ILSCO

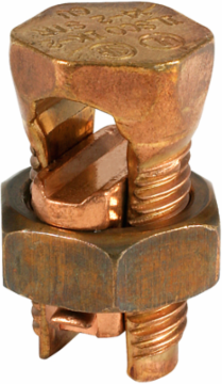

ILSCO IK-6 Copper Split Bolt, Conductor Range for Equal Main & Tap 6 Sol - 10 Sol, UL, CSA

  • MPN: IK-6
  • UPC: 783669470048
  • PPN: ILC-IK-6N

CAD

$8.48

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Copper Split Bolt, Conductor Range for Equal Main & Tap 6 Sol - 10 Sol, UL, CSA

Documentation & Downloads

Specifications

Key Specifications

Height0.63 in
Weight0.052 lbs
Length1.05 in
Width0.72 in

Voltage

Voltage Rating35 kV

Dimensions

Drive Size Main1/2, 5/8
Height BX (IN)2
Width BX (IN)6.1875
Drive Type MainExternal Hex
Weight BX (LB)5.877
Wire Diameter Range Primary (IN)0.102 - 0.162

Testing Standards

CSA File NumberLR-701570
Prop65 ComplianceWARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
UL / CULUS SpecificationUL 486A/B Listed, UL 467 Listed
CSA StandardC22.2 No. 188, C22.2 No. 65
UL Control Number460C
UL File NumberE6207

Additional Class Attributes

ConnectionMechanical
Number of Poles1
Number of Conductors1

Material and Finish

Conductor MaterialCopper
MaterialCopper

Conductor Ranges

Conductor Range for Equal Run & Tap Str6 Str - 8 Str
Conductor Range for Minimum Tap with Maximum Run16 Sol
Conductor Range for Equal Run & Tap Sol6 Sol - 10 Sol

Additional Technical Specifications

Conductor TypeStranded, Solid

General

Bag Quantity1
Direct BurialYes
NEMA CodeS-588-4
Carton Quantity DescriptionSTD PACK QTY 100
Dual RatedNo
UPC Code78366947004

Bolt and Screw Sizes

Number of Wire Binding Screws per Port1
Wire Binding Torque165

Color

ColorCopper

Environment and Temperature

Temperature Rating90°C
Copper Split Bolt, Conductor Range for Equal Main & Tap 6 Sol - 10 Sol, UL, CSA
