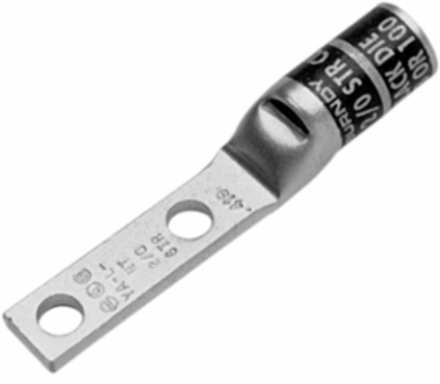

Burndy YA27L2NT14 Copper Terminal Connector, 3/0 AWG, 1/4 Inch Stud, Chamfered, Orange
- MPN: YA27L2NT14
- UPC: 781810285510
- PPN: BUR-26002932
CAD
$59.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Copper Tubing,Narrow,Double Hole /W/ insp window,3/0 AWG,1/4"stud, Tin plated,Orange,14 index
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1 in
- Dimension - Bolt Hole Size inch
- 0.27 in
- Dimension - D inch
- 1.30 in
- Dimension - Length Overall inch
- 2.73 in
- Dimension - Outside Diameter inch
- 0.62 in
- Dimension - Strip Length inch
- 1-1/16
- Dimension - Z inch
- 0.36 in
Dimension - B Length inch1.00 in
Dimension - Bolt Size fraction1/4
Dimension - L Length Overall mm69 mm
Dimension - N inch0.31 in
Dimension - Pad Width inch0.76 in
Dimension - Stud Size inch1/4
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Str Navy Size Range
- 150 (61) Navy
- Conductor - Copper Str Size Range
- 3/0 AWG
Conductor - Copper Str Navy Size150 (61) Navy
Conductor - Copper Str Size3/0 AWG
General
- Color Code
- Orange
- Die Index
- 14
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 2
- Plating Type
- Tin - Electro Plated
- UPC
- 781810285510
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
PlatedY
Trade NameHYLUG™
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 10
