Burndy YA38LNT12FX Copper Flex Conductor Terminal 535.3 kcmil 1/2 Inch Stud 3.41 Inch Length
- MPN: YA38LNT12FX
- UPC: 781810137468
- PPN: BUR-510281
CAD
$121.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Flex Conductor Standard Barrel Narrow, 535.3 kcmil 1325/24 500 Flex, 1/2 in, 3.41 in L.
Documentation & Downloads
Specifications

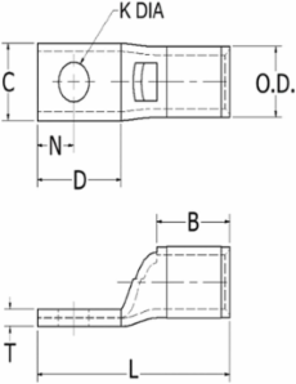

Dimensions
| Dimension - B Length fraction | 1-7/16 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.52 in |
| Dimension - D inch | 1.08 in |
| Dimension - Length Overall inch | 3.41 in |
| Dimension - Outside Diameter inch | 1.25 in |
| Dimension - Strip Length inch | 1-7/16 |
| Dimension - Z inch | 0.55 in |
| Dimension - B Length inch | 1.45 in |
|---|---|
| Dimension - Bolt Size fraction | 1/2 |
| Dimension - L Length Overall mm | 87 mm |
| Dimension - N inch | 0.53 in |
| Dimension - Pad Width inch | 1.63 in |
| Dimension - Stud Size inch | 1/2 |
| Physical Attribute - Tongue Angle | Straight |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 535.3 (1325/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size | 500 kcmil |
| Conductor - Copper Flex H Size | 500 kcmil |
| Conductor - Copper Flex I Size | 500 kcmil |
| Conductor - Copper Flex K Size | 500 kcmil |
| Conductor - Copper Flex M Size | 500 kcmil |
| Conductor - Copper DLO Size Range | 535.3 (1325/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size Range | 500 kcmil |
| Conductor - Copper Flex H Size Range | 500 kcmil |
| Conductor - Copper Flex I Size Range | 500 kcmil |
| Conductor - Copper Flex K Size Range | 500 kcmil |
| Conductor - Copper Flex M Size Range | 500 kcmil |
General
| Application | For Flex Conductor |
|---|---|
| Connector Type | Terminal |
| Feature - Barrel Style | Chamfered |
| Material | Copper |
| Plated | Y |
| Sub Brand | TERMINALS, HYLUG |
| Type | YAV-L-NTFX |
| Color Code | Pink |
|---|---|
| Die Index | L99 |
| Feature - Barrel Type | Standard |
| Physical Attribute - Number of Holes | 1 |
| Plating Type | Tin - Electro Plated |
| Trade Name | HYLUG™ |
| UPC | 781810137468 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 1 |
|---|
