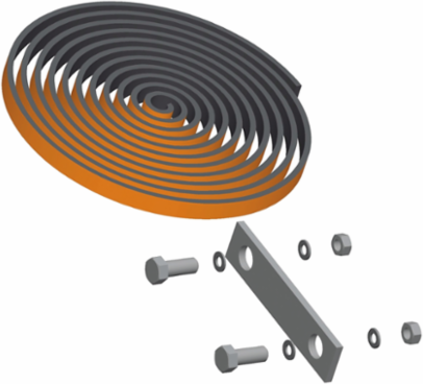

Schneider Electric NSYSMBK Spacial SM Coupling Kit, IP55, 60 mm Height, 210 mm Width/Depth
- MPN: NSYSMBK
- PPN: SCH-NSYSMBK
CAD
$11.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The Spacial SM standard coupling kit from Schneider Electric is expertly designed to facilitate the seamless joining of enclosures, providing a reliable solution for various applications. With an IP55 degree of protection, this coupling kit ensures durability and resistance against dust and water ingress, making it suitable for a range of environments. The kit includes a sealing gasket and necessary fixing elements, allowing for easy installation and secure mounting on the side of two enclosures. Measuring 60 mm in height and 210 mm in both width and depth, this multi-purpose accessory is compatible with the PanelSeT SM compact enclosure range, making it an essential addition for enhancing your enclosure setups.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
- Width
- 8.27 in
Height2.36 in
Depth210 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 sealing gasket, fixing elements
- Carbon Footprint Of The Distribution Phase [A4]
- 0.336871999, 0.3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.388034488, 0.4 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-02-24
- Stocking Flag
- Y
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Material
- 9 x 11 sealing gasket EPDM
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Sustainable Packaging
- No
- Pep Code
- ENVPEP1109023EN
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Recyclability Potential, In %
- 98
- Height Useful
- 60 mm
- Width Real
- 210 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Mounting Diameter0 mm, 12.5 mm
Carbon Footprint Of The End-of-life Phase [C1 To C4]4 kg CO2 eq., 4.113983307
Carbon Footprint Of The Manufacturing Phase [A1 To A3]8 kg CO2 eq., 7.603957314
Local Data StatusPublishable
Return IndicatorN
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1912
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Applicationmulti-purpose
Fixing Modeby fixing element
Mounting Locationside coupling of 2 enclosures
Product Or Component Typecoupling kit
RangePanelSeT
Software Versionv5.9.4
Total Lifecycle Carbon Footprint12 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Height Nominal60 mm
Width Nominal210 mm
Accessory / Separate Part Categorycoupling accessory
Package Weight(Lbs)1.682 kg
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 12.44284711
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Ip Degree Of ProtectionIP55
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1109023EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- coupling kit
ETIM
- ETIM 8
- EC002622
ETIM 9EC002622
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
