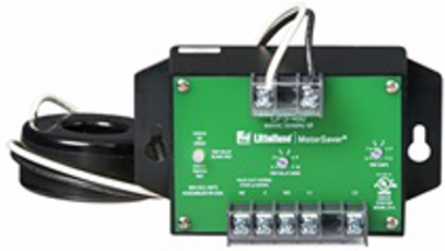

Littelfuse CP5460 CP5460 - CP-5 Series
- MPN: CP5460
- UPC: 079458991697
- PPN: LTF-CP5460
CAD
$590.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The CP-5 has both an adjustable trip level and an adjustable trip delay timer. When the current is sensed, the Model CP-5 activates its output relay, thus starting the motor/pump. When the current in the monitored power line falls below the userselectable trip point, the unit goes through a trip delay timer and then deactivates the output relay if the monitored current does not recover first.
Documentation & Downloads
Specifications
Key Specifications
- Input Voltage (V)
- 480VAC
- Output Form
- SPDT
- Restart Delay Range
- 1s
- Trip Point Range
- 0 - 5A
- Mounting Method
- #8 screws
- Weight (lbs/g)
- 1.0 lb. (16.0 oz. 453.6 g)
Input AC Line Frequency (Hz)50/60Hz (50Hz will increase all delay timers by 20%.)
Output Load Rating (VA)Pilot Duty: 470VA @ 600VAC
Trip Delay Range0 - 10m
Termination Type7 in.-lbs. 12-18AWG
Dimensions2.93 in H x 5.27 in W x 2.95 in D (74.4 x 133.9 x 74.9 mm)
