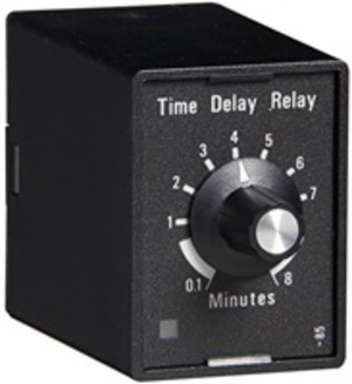

Littelfuse PRS65 PRS65 - PRS Series
- MPN: PRS65
- UPC: 079458998115
- PPN: LTF-PRS65
CAD
$189.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PRS65 - PRS Series
Documentation & Downloads
Specifications
Key Specifications
| Input Voltage (V) | 230VAC |
|---|---|
| Input AC Line Frequency (Hz) | 50/60Hz |
| Output Form | SPDT |
| Time Delay Type | Knob adjustable |
| Time Delay Tolerance (%) | Guaranteed time range |
| Reset Time (ms) | ≤ 80ms |
| Setpoint vs Ambient Temperature and Operating Voltage (%) | ≤ ±15% |
| Dielectric Breakdown | 1500V RMS minimum at 60Hz between input and output terminals |
| Mounting Method | Plug-in socket |
| Sample capable | No |
| Input Tolerance (%) | ±15% of nominal |
|---|---|
| Output Type | Relay |
| Output Load Rating (VA) | 10A resistive at 240VAC |
| Time Delay Range | 7 - 480s |
| Recycle Time (ms) | After timing: ≤16ms; During timing: 0.1% of max. time delay or 75ms whichever is greater |
| Repeat Accuracy (%) | ±2% under fixed conditions |
| Isolation Voltage (V) | ±1500V for 150 microseconds |
| Termination Type | Octal 8-pin plug-in |
| Operating Temperature | -20° to 65°C (-4°F to 149°F) |
