Schmersal 101204612 CSS 11-30S-D-M-ST Safety Sensor, M30, Stainless Steel, 2 Outputs, IP65/IP67/IP69
- MPN: 101204612
- PPN: SCM-101204612
CAD
$680.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
CSS 11-30S-D-M-ST Safety Sensor, M30, Stainless Steel, 2 Outputs, IP65/IP67/IP69
Features
- Stainless steel enclosure
- Max. 31 sensors can be wired in series.
- Connector M12, 8-pole
- Ø M30
- High repeat accuracy of the switching points
- Max. length of the sensor chain 200 m
- 2 short-circuit proof PNP safety outputs
- Integral cross-short, wire-breakage and external voltage monitoring of the safety cables up to the control cabinet
- Safety sensor can also be installed behind V4A covers.
Documentation & Downloads
Specifications
Electrical data
- Operating voltage
- 24 VDC -15 % / +10 %
- Rated operating voltage
- 24 VDC
- Required rated short-circuit current
- 100 A
No-load supply current I100 mA
Operating current600 mA
Switching frequency, approx.3 Hz
Note
- Note (General)
- Evaluation requirements: The switch-off pauses of 250 µs – 1500 µs must be tolerated by the evaluation. | The switch-off time of the safety sensor of 250 μs is additionally extended according the cable length and the capacity of the cable used. Typically a switch off time of 500 μs with 100 m of connection cable is reached.

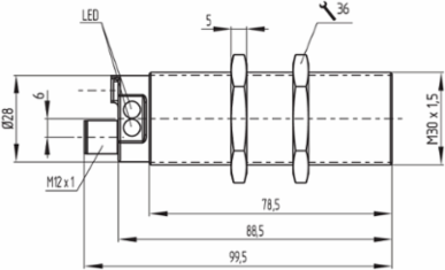

Mechanical data - Dimensions
- ISO thread of the sensor
- M30
Length of sensor99.5 mm
Pin assignment
- PIN 1
- 1A1 Ue: (1)
- PIN 3
- A2 GND
- PIN 5
- OUT Diagnostic output
- PIN 7
- Y2 Safety output 2
PIN 2X1 Safety input 1
PIN 4Y1 Safety output 1
PIN 6X2 Safety input 2
PIN 8IN without function
Ambient conditions - Insulation values
- Rated insulation voltage U
- 32 VAC/DC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution3
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
Scope of delivery of mounting material2x Mounting material M30 x 1.5 nuts
General data - Features
- Diagnostic output
- Yes
- Cross-circuit detection
- Yes
- Cascadable
- Yes
- Number of LEDs
- 2
- Number of fail-safe digital outputs
- 2
Short circuit detectionYes
Safety functionsYes
Integral system diagnostics, statusYes
Number of semi-conductor outputs with signaling function1
Number of series-wiring of sensors31
General data
- Standards
- EN IEC 60947-5-3 | EN IEC 61508
- Housing construction form
- Cylinder, thread
- Sensor topology
- Sensor for series wiring
- Gross weight
- 245 g
- Duration of risk, maximum
- 60 ms
Working principleinductive
Installation conditions (mechanical)not flush
Enclosure materialStainless steel
Reaction time, maximum60 ms
Safety classification
- Standards
- EN ISO 13849-1 | EN IEC 60947-5-3 | EN IEC 61508
- Category
- 4
- Safety Integrity Level (SIL), suitable for applications in
- 3
Performance Level, up toe
PFH value3.60 x 10⁻⁹ /h
Mission time20 Year(s)
Electrical data - Safety digital outputs
- Rated operating current (safety outputs)
- 250 mA
- Design of control elements
- p-type
- Leakage current I
- 0.5 mA
- Current, Utilisation category DC-12
- 0.25 A
- Current, Utilisation category DC-13
- 0.25 A
Output current, (fail-safe output), maximum0.25 A
Voltage drop U0.5 V
Voltage, Utilisation category DC-1224 VDC
Voltage, Utilisation category DC-1324 VDC
Ambient conditions
- Degree of protection
- IP65 | IP67 | IP69
- Storage and transport temperature, minimum
- -25 °C
- Resistance to vibrations
- 10 … 55 Hz, amplitude 1 mm
- Protection class
- II
Ambient temperature-25 ... +65 °C
Storage and transport temperature, maximum+85 °C
Restistance to shock30 g / 11 ms
Mechanical data - Connection technique
- Note (length of the sensor chain)
- Cable length and cross-section change the voltage drop dependiing on the output current
Electrical data - Diagnostic outputs
- Design of control elements
- p-type
- Voltage, Utilisation category DC-12
- 24 VDC
- Voltage, Utilisation category DC-13
- 24 VDC
Voltage drop U5 V
Current, Utilisation category DC-120.05 A
Current, Utilisation category DC-130.05 A

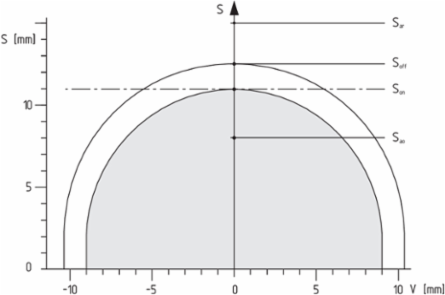

Mechanical data - Switching distances according EN IEC 60947-5-3
- Switch distance, typical
- 11 mm
- Assured switching distance "OFF" S
- 15 mm
Assured switching distance "ON" S8 mm
Mechanical data
- Actuating panels
- Actuation from top
- Hysteresis (Switching distance), maximum
- 2 mm
Active areafront side
Repeat accuracy R1 mm
Accessory
- Recommendation (actuator)
- CST 30S-1
Recommended safety switchgearPROTECT PSC1 | SRB-E-301ST | SRB-E-201LC
Approvals - Standards
- Certificates
- TÜV | cULus | UKCA
Electrical data - Electromagnetic compatibility (EMC)
- Interfering radiation
- IEC 61000-6-4
EMC ratingIEC 61000-6-2
