Schmersal 101181059 CSS 14 Safety Sensor, 35 mm Length, Inductive System, IP65/IP67, Side Actuation

MPN: 101181059
PPN: SCM-101181059

$538.89

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

CSS 14 Safety Sensor, 35 mm Length, Inductive System, IP65/IP67, Side Actuation

Features

1 x Pre-wired cable 8-pole
Actuation from side
Max. 31 sensors can be wired in series.
Thermoplastic enclosure
Electronic contact-free, coded system
Misaligned actuation possible
27 mm x 108.2 mm x 35 mm
High repeat accuracy of the switching points
Max. length of the sensor chain 200 m
2 short-circuit proof PNP safety outputs
Integral cross-short, wire-breakage and external voltage monitoring of the safety cables up to the control cabinet

Documentation & Downloads

Specifications

Electrical data

No-load supply current I	100 mA
Required rated short-circuit current	100 A

Operating current	600 mA
Switching frequency, approx.	3 Hz

Note

Note (General)	Evaluation requirements: dual-channel safety input, suitable for p-type sensors with NO function. The safety-monitoring module must tolerate internal functional tests of the sensors with cyclic switch-off of the sensor outputs for max. 0.5 ms. Short-circuit recognition by the evaluation is not necessary.

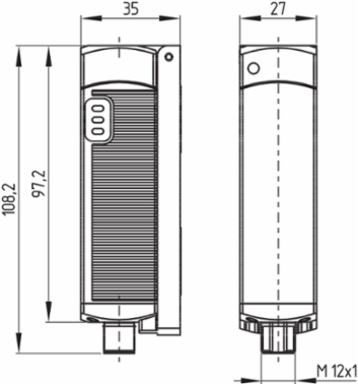

Mechanical data - Dimensions

Length of sensor	35 mm
Height of sensor	108.2 mm

Width of sensor	27 mm

Pin assignment

PIN 1	A1 Ue Brown
PIN 3	A2 GND Blue
PIN 5	OUT Diagnostic output OUT Grey
PIN 7	Y2 Safety output 2 red

PIN 2	X1 Safety input 1 White
PIN 4	Y1 Safety output 1 Black
PIN 6	X2 Safety input 2 violet
PIN 8	IN without function Pink

Ambient conditions - Insulation values

Rated insulation voltage U	32 VDC
Overvoltage category	III

Rated impulse withstand voltage U	0.8 kV
Degree of pollution	3

Scope of delivery

Scope of delivery	Actuator must be ordered separately.

General data - Features

Diagnostic output	Yes
Cross-circuit detection	Yes
Cascadable	Yes
Number of LEDs	3
Number of fail-safe digital outputs	2

Short circuit detection	Yes
Safety functions	Yes
Integral system diagnostics, status	Yes
Number of semi-conductor outputs with signaling function	1
Number of series-wiring of sensors	31

General data

Standards	EN IEC 60947-5-3
Housing construction form	Block
Sensor topology	Sensor for series wiring
Active area	Glass-fibre, reinforced thermoplastic
Reaction time, maximum	30 ms

Working principle	inductive
Installation conditions (mechanical)	not flush
Enclosure material	Glass-fibre, reinforced thermoplastic
Gross weight	295 g
Duration of risk, maximum	60 ms

Safety classification

Standards	EN ISO 13849-1 \| EN IEC 60947-5-3 \| EN IEC 61508
Category	4
Safety Integrity Level (SIL), suitable for applications in	3

Performance Level, up to	e
PFH value	3.60 x 10⁻⁹ /h
Mission time	20 Year(s)

Electrical data - Safety digital outputs

Rated operating current (safety outputs)	250 mA
Design of control elements	p-type
Leakage current I	0.5 mA
Current, Utilisation category DC-12	0.25 A
Current, Utilisation category DC-13	0.25 A

Output current, (fail-safe output), maximum	0.25 A
Voltage drop U	0.5 V
Voltage, Utilisation category DC-12	24 VDC
Voltage, Utilisation category DC-13	24 VDC

Ambient conditions

Degree of protection	IP65 \| IP67
Storage and transport temperature, minimum	-25 °C
Resistance to vibrations	10 … 55 Hz, amplitude 1 mm
Protection class	II

Ambient temperature	-25 ... +70 °C
Storage and transport temperature, maximum	+85 °C
Restistance to shock	30 g / 11 ms

Mechanical data - Connection technique

Termination	Cable (Y-UL 2517), 8-pole
Length of cable	2 m
Wire cross-section	22 AWG

Note (length of the sensor chain)	Cable length and cross-section change the voltage drop dependiing on the output current
Cable section, maximum	8 x 0.35 mm²
Cable type	LiYY

Electrical data - Diagnostic outputs

Design of control elements	p-type
Voltage, Utilisation category DC-12	24 VDC
Voltage, Utilisation category DC-13	24 VDC

Voltage drop U	5 V
Current, Utilisation category DC-12	0.05 A
Current, Utilisation category DC-13	0.05 A

Mechanical data - Switching distances according EN IEC 60947-5-3

Nominal switching distance S	10 mm \| 14 mm
Assured switching distance "OFF" S	13 mm \| 17 mm

Assured switching distance "ON" S	12 mm \| 8 mm

Mechanical data

Actuating panels	lateral
Switching distance actuator	Actuator CST 180-1 / CST 180-2: 10 mm \| Actuator CST 180-1 / CST 180-2: 13 mm \| Actuator CST 180-1 / CST 180-2: 8 mm \| Actuator CST 34-S-1: 12 mm \| Actuator CST 34-S-1: 14 mm \| Actuator CST 34-S-1: 17 mm \| Actuator CST 34-S-2: 12 mm \| Actuator CST 34-S-2: 14 mm \| Actuator CST 34-S-2: 17 mm \| Actuator CST 34-S-3: 12 mm \| Actuator CST 34-S-3: 14 mm \| Actuator CST 34-S-3: 17 mm
Repeat accuracy R	0.5 mm

Active area	lateral
Hysteresis (Switching distance), maximum	1.5 mm

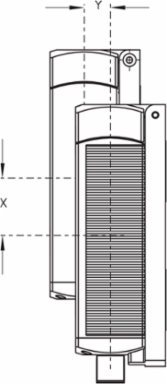

Note (Repeat accuracy R)	Axial offset: The long side allows for a maximum height misalignment (x) of sensor and actuator of 36 mm (e.g. mounting tolerance or due to guard door sagging). Increased misalignment, max. 53 mm, possible when the CST 34-S-2 actuator is used. The axial misalignment (y) is max. ± 10 mm (see figure: Operating principle)
