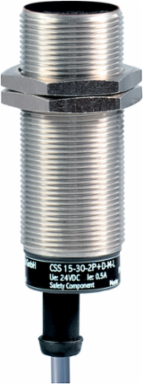

Schmersal 101209841 Electronic Safety Sensor M30, 24 VDC, 200 m Chain Length, 2 PNP Outputs
- MPN: 101209841
- PPN: SCM-101209841
CAD
$686.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Electronic Safety Sensor M30, 24 VDC, 200 m Chain Length, 2 PNP Outputs
Features
- Metal enclosure
- Max. 16 sensors can be wired in series.
- Pre-wired cable, 7-pole
- Ø M30
- High repeat accuracy of the switching points
- Max. length of the sensor chain 200 m
- 2 short-circuit proof PNP safety outputs
- Integral cross-short, wire-breakage and external voltage monitoring of the safety cables up to the control cabinet
Documentation & Downloads
Specifications
Electrical data
- Operating voltage
- 24 VDC -15 % / +10 %
- Rated operating voltage
- 24 VDC
- Required rated short-circuit current
- 100 A
No-load supply current I50 mA
Operating current1,100 mA | 500 mA
Switching frequency, approx.3 Hz
Note
- Note (General)
- Evaluation requirements: The switch-off pauses of 250 µs – 1500 µs must be tolerated by the evaluation. | The switch-off time of the safety sensor of 250 μs is additionally extended according the cable length and the capacity of the cable used. Typically a switch off time of 500 μs with 100 m of connection cable is reached.

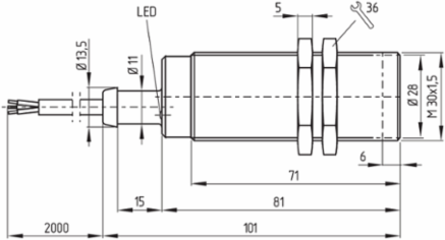

Mechanical data - Dimensions
- ISO thread of the sensor
- M30
Length of sensor101 mm

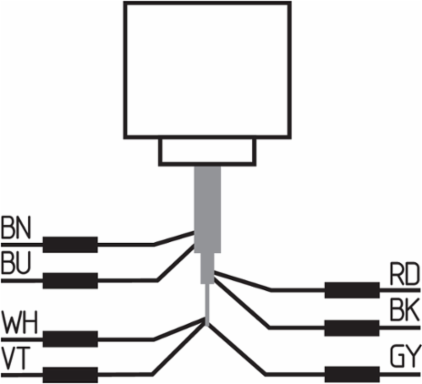

Pin assignment
- PIN 1
- A1 Ue Brown
- PIN 3
- A2 GND Blue
- PIN 5
- OUT diagnostic output: Grey
- PIN 7
- Y2 Safety output 2 red
PIN 2X1 safety input 1: Violet
PIN 4Y1 Safety output 1 Black
PIN 6X2 Safety input 2 White
Ambient conditions - Insulation values
- Rated insulation voltage U
- 32 VAC/DC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution3
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
Scope of delivery of mounting material2x Mounting accessories Nuts M30
General data - Features
- Diagnostic output
- Yes
- Cross-circuit detection
- Yes
- Cascadable
- Yes

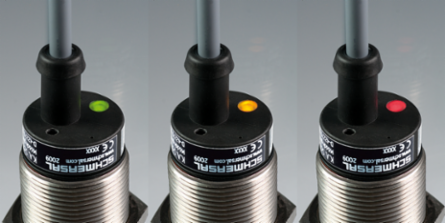

- Number of LEDs
- 1
- Number of fail-safe digital outputs
- 2
Short circuit detectionYes
Safety functionsYes
Integral system diagnostics, statusYes
Number of semi-conductor outputs with signaling function1
Number of series-wiring of sensors16
General data
- Standards
- EN IEC 60947-5-3 | EN IEC 61508
- Housing construction form
- Cylinder, thread
- Sensor topology
- Sensor for series wiring
- Active area
- Plastic
- Reaction time, maximum
- 30 ms
Working principleinductive
Installation conditions (mechanical)not flush
Enclosure materialNickel plated brass
Gross weight248 g
Duration of risk, maximum30 ms
Safety classification
- Standards
- EN ISO 13849-1 | EN IEC 60947-5-3 | EN IEC 61508
- Category
- 4
- Safety Integrity Level (SIL), suitable for applications in
- 3
Performance Level, up toe
PFH value2.50 x 10⁻⁹ /h
Mission time20 Year(s)
Electrical data - Safety digital outputs
- Output current, (fail-safe output), maximum
- 0.5 A
- Voltage drop U
- 0.5 V
- Voltage, Utilisation category DC-12
- 24 VDC
- Voltage, Utilisation category DC-13
- 24 VDC
Design of control elementsp-type
Leakage current I0.5 mA
Current, Utilisation category DC-120.5 A
Current, Utilisation category DC-130.5 A
Ambient conditions
- Degree of protection
- IP65 | IP67
- Storage and transport temperature, minimum
- -25 °C
- Resistance to vibrations
- 10 … 55 Hz, amplitude 1 mm
- Protection class
- II
Ambient temperature-25 ... +55 °C
Storage and transport temperature, maximum+85 °C
Restistance to shock30 g / 11 ms
Mechanical data - Connection technique
- Termination
- Cable
- Length of cable
- 2 m
- Wire cross-section
- 23 AWG
Note (length of the sensor chain)Cable length and cross-section change the voltage drop dependiing on the output current
Wire cross-section0.25 mm
Electrical data - Diagnostic outputs
- Design of control elements
- p-type
- Voltage, Utilisation category DC-12
- 24 VDC
- Voltage, Utilisation category DC-13
- 24 VDC
Voltage drop U4 V
Current, Utilisation category DC-120.05 A
Current, Utilisation category DC-130.05 A

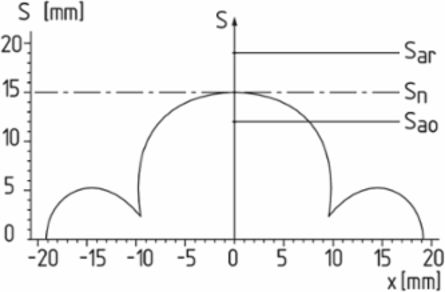

Mechanical data - Switching distances according EN IEC 60947-5-3
- Nominal switching distance S
- 12 mm | 15 mm
- Assured switching distance "OFF" S
- 16 mm | 19 mm
Assured switching distance "ON" S10 mm | 12 mm
Mechanical data
- Actuating panels
- Actuation from top
- Switching distance actuator
- Actuator CST 30-1: 12 mm | Actuator CST 30-1: 15 mm | Actuator CST 30-1: 19 mm | Actuator CST 34-S-3: 10 mm | Actuator CST 34-S-3: 12 mm | Actuator CST 34-S-3: 16 mm
- Repeat accuracy R
- 1 mm
Active areafront side
Hysteresis (Switching distance), maximum2 mm
Accessory
- Recommendation (actuator)
- CST 34-S-3 | CST 30-1
Recommended safety switchgearPROTECT PSC1 | SRB-E-301ST | SRB-E-201LC
Approvals - Standards
- Certificates
- UKCA
Electrical data - Electromagnetic compatibility (EMC)
- Interfering radiation
- IEC 61000-6-4
EMC ratingIEC 61000-6-2
