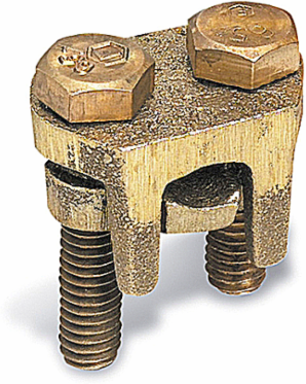

Blackburn 2B10X Copper Two-Bolt Connector for 2-1/0 Str Main, 10 Sol-1/0 Str Tap, 1/2 Inch Bolt
- MPN: 2B10X
- UPC: 783786400089
- PPN: T-B-2B10X
CAD
$31.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Copper Type 2BX - One piece Two-Bolt Connector without spacer for Wire Range Main: 2 - 1/0 Str. Tap: 10 Sol. - 1/0 Str. , Bolt Size 1/2
Features
- Single-piece construction. Castings and bolts of high-strength copper alloy. Neoprene washer holds free bolt in place during installation.
- UL 486A listed for copper conductor only.
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121408 Mechanical connectors
- Brand Name
- Blackburn
- Special Features
- Single-piece construction. Castings and bolts of high-strength copper alloy. Neoprene washer holds free bolt in place during installation.
- Material
- Copper
- Conductor Range (Tap/Secondary)
- 10 Sol - 1/0 Str
IGCC4541 Mechanical connectors
TypeTwo-Bolt Connector
StandardUL E9809
Conductor Range (Main/Primary)2 - 1/0 Str
Bolt Size42737
Packaging
- Inner Quantity
- 25
- Outer Quantity
- 250
- Weight Uom
- 20 lbs. per 100
Inner Dimensions (inches)5x3.37x6.5
Outer Dimensions (inches)10.56x7.25x19.12
European Specifications (ETIM)
- ETIM
- EC000491 Earth terminal clamp
- Material
- Copper
Suitable forRound conductor
