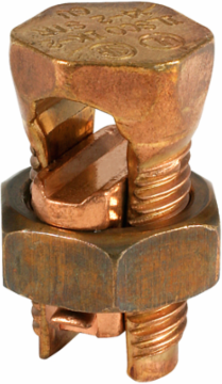

ILSCO IK-3 Copper Split Bolt, Conductor Range for Equal Main & Tap 2 Sol - 6 Sol, UL, CSA
- MPN: IK-3
- UPC: 783669470086
- PPN: ILC-IK-3N
CAD
$14.25
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Split Bolt, Conductor Range for Equal Main & Tap 2 Sol - 6 Sol, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
| Height | 0.81 in |
|---|---|
| Weight | 0.076 lbs |
| Length | 1.32 in |
|---|---|
| Width | 0.94 in |
Voltage
| Voltage Rating | 35 kV |
|---|
Dimensions
| Drive Size Main | 11/16, 13/16 |
|---|---|
| Height BX (IN) | 2 |
| Width BX (IN) | 6.1875 |
| Drive Type Main | External Hex |
|---|---|
| Weight BX (LB) | 6.097 |
| Wire Diameter Range Primary (IN) | 0.162 - 0.258 |
Testing Standards
| CSA File Number | LR-701570 |
|---|---|
| Prop65 Compliance | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
| UL / CULUS Specification | UL 486A/B Listed, UL 467 Listed |
| CSA Standard | C22.2 No. 188, C22.2 No. 65 |
|---|---|
| UL Control Number | 460C |
| UL File Number | E6207 |
Additional Class Attributes
| Connection | Mechanical |
|---|---|
| Number of Poles | 1 |
| Number of Conductors | 1 |
|---|
Material and Finish
| Conductor Material | Copper |
|---|
| Material | Copper |
|---|
Conductor Ranges
| Conductor Range for Equal Run & Tap Str | 2 Str - 5 Str |
|---|---|
| Conductor Range for Minimum Tap with Maximum Run | 12 Sol |
| Max Conductor Copperweld - Type A | 5A |
| Conductor Range for Equal Run & Tap Sol | 2 Sol - 6 Sol |
|---|---|
| Max Conductor Copperweld - Str | 3 No. 9 |
Additional Technical Specifications
| Conductor Type | Solid, Stranded |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Direct Burial | Yes |
| NEMA Code | S-588-4 |
| Carton Quantity Description | STD PACK QTY 50 |
|---|---|
| Dual Rated | No |
| UPC Code | 78366947008 |
Bolt and Screw Sizes
| Number of Wire Binding Screws per Port | 1 |
|---|
| Wire Binding Torque | 275 |
|---|
Color
| Color | Copper |
|---|
Environment and Temperature
| Temperature Rating | 90°C |
|---|
