Burndy YAV26LTC12FX45 HYLUG Terminal, 2/0 AWG, 600V, 35kV, 1/2 Inch Bolt, 45 Bend
- MPN: YAV26LTC12FX45
- UPC: 781810022672
- PPN: BUR-518522
CAD
$30.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

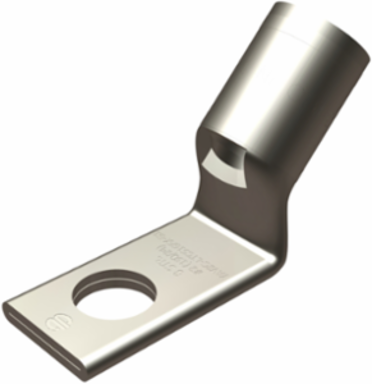

Cu Tubing HYLUG; 1 Hole with Inspection Window; 2/0 WELD, 325/24 DLO, 2/0 AWG Code, 125 Navy, 600V, 35kV; 1/2" stud; Compression; 45 degree bend
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 0.81 in
- Dimension - Bolt Size fraction
- 1/2
- Dimension - Hole Size mm
- 13 mm
- Dimension - Length Overall inch
- 2.29 in
- Dimension - Outside Diameter inch
- 0.63 in
- Dimension - Strip Length inch
- 13/16
- Physical Attribute - Tongue Angle
- 45 Degree
Dimension - Bolt Hole Size inch0.53 in
Dimension - Hole Size inch0.53 in
Dimension - L Length Overall mm58 mm
Dimension - N inch0.53 in
Dimension - Pad Width inch0.93 in
Dimension - Z inch0.55 in
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 2/0 (325/#24) DLO
- Conductor - Copper Flex H Size
- 2/0 AWG
- Conductor - Copper Flex K Size
- 2/0 AWG
- Conductor - Copper Str Navy Size
- 125 (61) Navy
- Conductor - CopperWeld Str Size
- 2/0 F AWG;2/0 G AWG;2/0 J AWG;2/0 K AWG;2/0 V AWG
Conductor - Copper Flex G Size2/0 AWG
Conductor - Copper Flex I Size2/0 AWG
Conductor - Copper Flex M Size2/0 AWG
Conductor - Copper Str Size2/0 AWG
Conductor - MaterialCopper
General
- Color Code
- Black
- Die Index
- 13
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 1
- Plated
- Yes
- Trade Name
- HYLUG™
- UPC
- 781810022672
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
Physical Attribute - Tongue TypeStandard
Plating TypeTin - Electro Plated
TypeStandard Barrel, Tin Plated
UPC 12 Digit7818100226722
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
