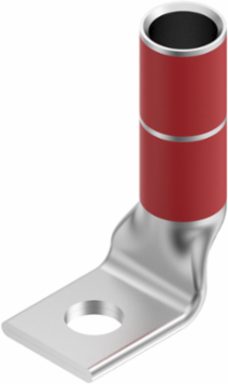

Burndy YA3190 HYLUGTM Tin Plated Terminal 350 kcmil, 1-1/2 Inch Bolt Size, 90 Degree Angle
- MPN: YA3190
- UPC: 781810144596
- PPN: BUR-25004593
CAD
$69.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Tin plated termainl,Long barrel chamfered,350 kcmil,350(91)Navy
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 2 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - Hole Size inch
- 0.53 in
- Dimension - L Length Overall mm
- 42 mm
- Dimension - N inch
- 0.53 in
- Dimension - Pad Width inch
- 1.29 in
- Dimension - Thread Size
- 1/2
- Physical Attribute - Tongue Angle
- 90 Degree
Dimension - B Length inch2.00 in
Dimension - Bolt Size fraction1/2
Dimension - Hole Size mm13 mm
Dimension - Length Overall inch1.65 in
Dimension - Outside Diameter inch0.88 in
Dimension - Strip Length inch2-1/16
Dimension - Z inch0.55 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - Copper Str Navy Size
- 350 (91) Navy
- Conductor - Material
- Copper
Conductor - Copper Str Size350 kcmil
General
- Color Code
- Red
- Die Index
- 18;324
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 1
- Plating Type
- Tin - Electro Plated
- Type
- Long Barrel, Tin Plated
- UPC 12 Digit
- 7818101445966
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
PlatedY
Trade NameHYLUG™
UPC781810144596
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 2
