Burndy YA262N90 Copper Long Barrel HYLUG Terminal 2/0 AWG, 1/2 Inch Bolt Hole, UL Listed
- MPN: YA262N90
- UPC: 781810133897
- PPN: BUR-50240F
CAD
$50.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

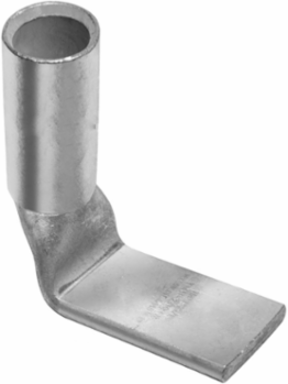

Copper Two Hole HYLUG - Long Barrel ,90 Degree Pad 2/0 AWG,1/2" Bolt Hole with 1-3/4" Spacing,Tin Plated,Color: Black,Die Index: 13
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-1/2 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - D inch
- 3.02 in
- Dimension - Hole Size mm
- 14 mm
- Dimension - Length Overall inch
- 3.41 in
- Dimension - Outside Diameter inch
- 0.56 in
- Dimension - Strip Length inch
- 1-9/16
- Physical Attribute - Tongue Angle
- 90 Degree
Dimension - B Length inch1.50 in
Dimension - Bolt Size fraction1/2
Dimension - Hole Size inch0.56 in
Dimension - L Length Overall mm87 mm
Dimension - N inch0.63 in
Dimension - Pad Width inch0.83 in
Dimension - Z inch0.64 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - Copper Str Navy Size
- 125 (61) Navy
- Conductor - Copper Str Size
- 2/0 AWG
- Conductor - Material
- Copper
Conductor - Copper Str Navy Size Range125 (61) Navy
Conductor - Copper Str Size Range2/0 AWG
General
- Color Code
- Black
- Die Index
- 13
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 2
- Plating Type
- Tin - Electro Plated
- Type
- Long Barrel, Tin Plated
- UPC 12 Digit
- 7818101338977
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
PlatedY
Trade NameHYLUG™
UPC781810133897
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 10
