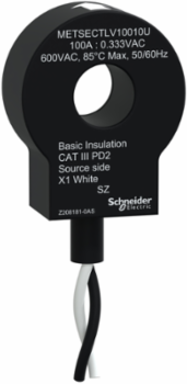

Schneider Electric METSECTLV10010U solid core current transformer, PowerLogic UL2808 CT, 100A, 0.333V output, 10mm diameter, 6ft lead
- MPN: METSECTLV10010U
- PPN: SCH-METSECTLV10010U
- UNSPSC: 39121032
CAD
$57.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
solid core current transformer, PowerLogic UL2808 CT, 100A, 0.333V output, 10mm diameter, 6ft lead
Features
- UL2808 Compliant Split Core Current Transformer
- Split Core design for Ease of Installation
- Compatible with LVCT type panel meters, like EM3000 series
- Suitable for Ambient upto 60°C
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Weight | 100 g |
| Width | 1.3 in |
|---|---|
| Depth | 0.7 in |
Complementary Attributes
| Line Rated Current | 100 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SC, SI |
|---|---|
| Market Segmentation Id | RESIDENTIAL, COMMERCIAL, INDUSTRIAL |
| Network Frequency | 50 Hz, 60 Hz |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.2 kg CO2 eq., 0.220286504124329 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 0.7 kg CO2 eq., 0.6999709342899039 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Short Name | LVCT |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range | PowerLogic |
| Software Version | v6.2 |
| Total Lifecycle Carbon Footprint | 1 kg CO2 eq. |
| Database Version | 2023-02 |
| Height Nominal | total: 1.5 in |
| Width Nominal | 1.3 in |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Unit | Unit |
| Recyclability Potential In % | 80 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator |
|---|---|
| Market Segmentation | Residential, Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase A4 | 0.0220544317329677, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.0222103559342491, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2025-09-23 |
| Device Type | Relay, Control & Measurement - measuring, monitoring device |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2408032_V1 |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2439 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Current Transformer Type | solid core |
| Electrical Connection | flying lead 6 ft 16 AWG) 600 V |
| Measurement Accuracy | 0.5 % |
| Product Or Component Type | current transformer |
| Returnability | Yes |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Height Useful | diameter: 0.4 in |
| Width Real | 1.3 in |
| Customs Code | 8504312000 |
| Functional Unit Description | The Solid core current transformers suited for low voltage network, from 50 A to 400 A. They deliver secondary output in the form of 0.333 V proportional to the current measured at the primary. |
| Reference Lifetime In Y | 20 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-85 °C, -40-85 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.9645222260814498 |
| Environmental Disclosure | ENVPEP2408032EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Relative Humidity | 0-95 % |
| Pep Verification Date | 2024-01-09 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Ambient Air Temperature For Storage | -50-105 °C, -50-105 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2408032_V1 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2408032EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | current transformer |
|---|
Output Attributes
| Output Voltage | 0.333 V |
|---|
