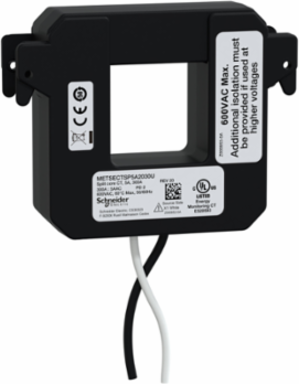

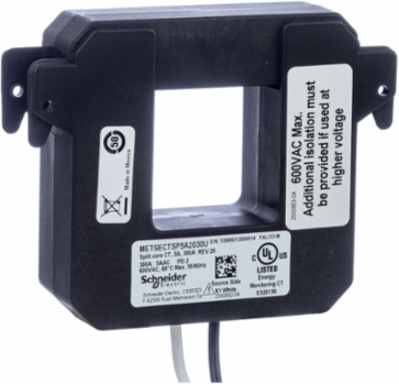

Schneider Electric METSECTSP5A2030U Split Core Current Transformer 300A, 5A Output, 1.12 Inch Depth

MPN: METSECTSP5A2030U
PPN: SCH-METSECTSP5A2030U

$147.74

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This split core current transformer from Schneider Electric is designed for efficient measurement in electrical systems, handling currents of up to 300A with a reliable 5A output. Its compact 1.12-inch depth makes it easy to install and ideal for applications where space is limited. Constructed to provide accurate current sensing, this transformer is essential for effective monitoring and controlling of electrical circuits, ensuring that you can maintain optimal performance in your systems.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico, United States

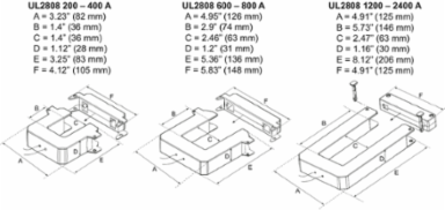

Width	4.12 in

Height	3.25 in
Depth	1.12 in

Important Information Attributes

Network Frequency	50 Hz, 60 Hz
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.9 kg CO2 eq., 0.8665796226236271
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	5 kg CO2 eq., 4.997146258933206
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Serviceability	No
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Product Kit Identifier	N
Current Transformer Type	split core
Energy Efficiency Optimized	False
Insulation	basic insulation 600 V ACreinforced insulation 300 V AC
Mounting Location	indoor use only
Primary Operational Current	300 A
Product Or Component Type	current transformer
Returnability	Yes
Software Version	v6.2.4
Total Lifecycle Carbon Footprint	154 kg CO2 eq.
Pep Code	ENVPEP2511018_V1-EN
Pep Verification Date	2025-12-26
Psr Version	PSR-0005-ed3-2023 06 06
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %	53
Height Useful	total: 3.25 in
Width Real	total: 4.12 in
Accessory / Separate Part Category	measurement accessory
Package Weight(Lbs)	832 g
Warranty (In Months)	18

Carbon Footprint Of The Distribution Phase [A4]	0.43821879545447595, 0.4 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.017838721362181564, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	147 kg CO2 eq., 147.46026036462305
Local Publishable Date	2025-09-16
Stocking Flag	Y
Device Type	Relay, Control & Measurement - measuring, monitoring device
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2511018_V1-EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2508
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Current Transformer Ratio	300/5
Electrical Connection	8 ft 16 AWG flying lead
Installation Category	III
Measurement Accuracy	1 %
Network Type	AC
Product Availability	Stock - Normally stocked in distribution facility
Range	PowerLogic
Secondary Current	5 A
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	306.6
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Height Nominal	internal: 1.4 in
Width Nominal	internal: 1.4 in
Certificate Agency	UL
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8504312000

Environment Attributes Main

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	153.78004376299654
Circularity Profile	ENVEOLI2511018_V1-EN
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Code	ENVPEP2511018_V1-EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Operating Altitude	<= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Ambient Air Temperature For Operation	-15-60 °C-15-60 °C
Environmental Disclosure	ENVPEP2511018_V1-EN
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Relative Humidity	0-95 % non condensing
Pep Verification Date	2025-12-26
Psr Version	PSR-0005-ed3-2023 06 06
