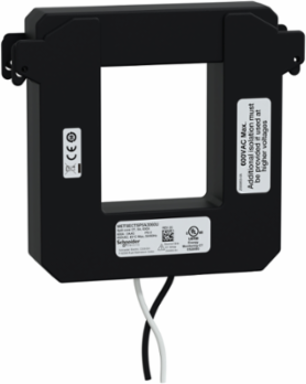

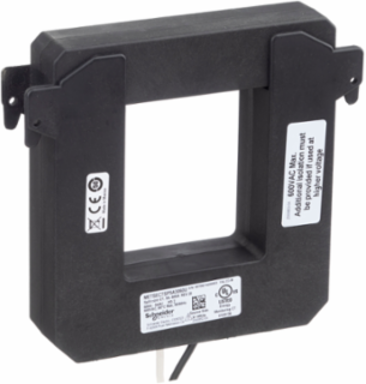

Schneider Electric METSECTSP5A3060U Split core current transformer, PowerLogic UL2808 CT, 600A, 5A output
- MPN: METSECTSP5A3060U
- PPN: SCH-METSECTSP5A3060U
- UNSPSC: 39121032
CAD
$205.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This current transformer, standard for busbar, has a line rated current of 600 A and a secondary current rating of 5 A. This current transformer do have a 74 mm x 63 mm opening. Compliant with the safety / standard UL2808. These emergency stop rope pull switches can be equipped with trip indicators, cable tension adjustment can be performed using a turnbuckle.
Features
- UL2808 Compliant Split Core Current Transformer
- Split Core design for Ease of Installation
- Energy and power management
- Suitable for Ambient upto 70°C
Documentation & Downloads
Specifications

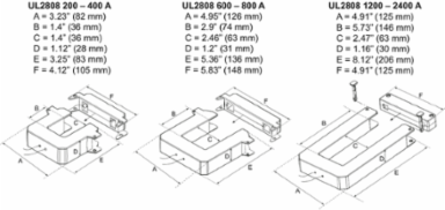

Key Specifications
| Country of Origin | United States |
|---|---|
| Width | 5.83 in |
| Depth | 1.12 in |
| Height | 5.36 in |
|---|---|
| Weight | 1819.9 g |
Important Information Attributes
| Network Frequency | 50 Hz, 60 Hz |
|---|---|
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 2 kg CO2 eq., 2.011238097242471 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 10 kg CO2 eq., 9.543844548113574 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Current Transformer Type | split core |
| Energy Efficiency Optimized | False |
| Insulation | basic insulation 600 V ACreinforced insulation 300 V AC |
| Mounting Location | indoor use only |
| Primary Operational Current | 600 A |
| Product Or Component Type | current transformer |
| Returnability | Yes |
| Software Version | v6.2.4 |
| Total Lifecycle Carbon Footprint | 223 kg CO2 eq. |
| Database Version | 2024-01 |
| Height Nominal | internal: 2.9 in |
| Width Nominal | internal: 2.46 in |
| Certificate Agency | UL |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Recyclability Potential In % | 69 |
| Carbon Footprint Of The Distribution Phase A4 | 0.7858833128178959, 0.8 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase A5 | 0.020954361910505346, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 211 kg CO2 eq., 210.65751480660438 |
| Local Publishable Date | 2025-09-16 |
| Device Type | Relay, Control & Measurement - measuring, monitoring device |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2511019_V1-EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2508 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Current Transformer Ratio | 600/5 |
| Electrical Connection | 8 ft 16 AWG flying lead |
| Installation Category | III |
| Measurement Accuracy | 1 % |
| Network Type | AC |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range | PowerLogic |
| Secondary Current | 5 A |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Height Useful | total: 5.36 in |
| Width Real | total: 5.83 in |
| Accessory / Separate Part Category | measurement accessory |
| Customs Code | 8504312000 |
| Functional Unit Description | Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards. |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 438 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 223.01943512668885 |
| Circularity Profile | ENVEOLI2511019_V1-EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2511019_V1-EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Operating Altitude | <= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m) |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | -15-60 °C-15-60 °C |
| Environmental Disclosure | ENVPEP2511019_V1-EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Relative Humidity | 0-95 % non condensing |
| Pep Verification Date | 2025-12-26 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
General Attributes
| Product Or Component Type | current transformer |
|---|
ETIM
| ETIM 8 | EC002048 |
|---|---|
| ETIM 10 | EC002048 |
| ETIM 9 | EC002048 |
|---|
