Square D PCSPCTFCL50014 AccuSine+ Current Transformer 500/1, 101.6mm Round Split Core
- MPN: PCSPCTFCL50014
- PPN: SCH-PCSPCTFCL50014
- UNSPSC: 39121032
CAD
$1246.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

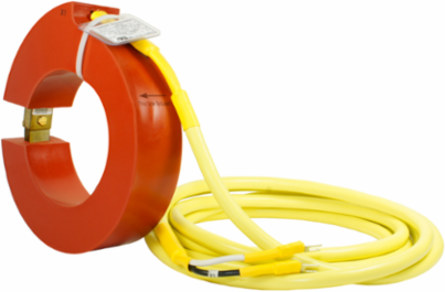

This round split-core current transformer, desinged to be opened with a twist motion, has a line rated current of 500A and a secondary rating of 1A. The inner diameter of this coil is 101.6mm. Measurement accuracy of the primary rating is 4% from 200A to 300A and 3% above. A flying lead of 3.65 meters with spade connectors is available at the secondary of the transformer. This product received the cURus certification, and CE.
Documentation & Downloads
Specifications
Key Specifications
| Weight | 1.6 kg |
|---|---|
| Range Compatibility | AccuSine AccuSine PCS+ active harmonic filter || AccuSine AccuSine PFV+ electronic VAR controller |
| Current Transformer Type | split core |
| Shape | round |
| Secondary Current | 1 A |
|---|---|
| Accessory / Separate Part Category | measurement accessory |
| Product Or Component Type | current transformer |
| Range | AccuSine |
Complementary
| Network Frequency | 50...400 Hz |
|---|---|
| Current Transformer Ratio | 500/1 |
| Electrical Connection | flying lead 3.65 m720 V |
| Line Rated Current | 500 A |
| [Uimp] Rated Impulse Withstand Voltage | 10 kV (50 µs) |
| Net Weight | 1.6 kg |
| Accuracy Class | class 3 |
| [Ue] Rated Operational Voltage | < 720 V AC 50...400 Hz |
|---|---|
| Measurement Accuracy | 3 % |
| Input Impedance | 2 Ohm |
| Continuous Thermal Current Rating Factor | 1.25 30 °C || 1 55 °C |
| Diameter | inner 101.6 mm || outer 165.1 mm |
| Depth | outside : 38.1 mm |
Offer Sustainability
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Rohs Exemption Information | Yes |
|---|---|
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Environment
| Product Certifications | cURus || CE |
|---|---|
| Standards | IEC 60044-1 |
| Ambient Air Temperature For Operation | -45-55 °C |
|---|
