nVent Hoffman

nVent Hoffman D16148CHSCFGP Hinge-Cover WiFi Type 4X, 16.00x14.00x8.00, Lt Gray, Fiberglass

Hinge-Cover WiFi Type 4X, 16.00x14.00x8.00, Lt Gray, Fiberglass
  • MPN: D16148CHSCFGP
  • UPC: 783510149635
  • PPN: HOF-D16148CHSCFGP
  • UNSPSC: 43223306

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$432.92/ EA

Description

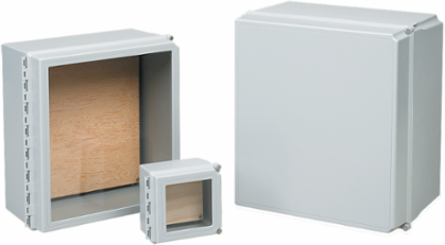

Fiberglass WiFi Enclosure is a secure, hinged enclosure that does not impede WiFi or WLAN signals. This Hinge-Cover WiFi Type 4X, D16148CHSCFGP item measures 16.00x14.00x8.00in. with a material of Fiberglass colored Lt Gray.

Features

  • Fiberglass is easily punched, drilled, filed or sawed
  • Seamless foam-in-place gasket assures watertight and dusttight seal
  • Molded-in-place threaded brass inserts and plated steel screws are provided for mounting optional panels and terminal block kits
  • Removable hinged cover attached to body with Type 316 stainless steel hinge pin
  • Screw cover enclosures are secured with two captivated Type 316 stainless steel slotted cross-point cover screws
  • Available quick-release latches are corrosion-resistant polyester located in corners to provide unobstructed access to enclosure
  • Enclosure and door made of molded fiberglass polyester that resists chemicals and temperature change
  • Scratch-resistant polycarbonate windows are permanently bonded in place
  • Polyester mounting brackets and stainless steel attachment screws are provided with each enclosure
  • Hinge pin and bail are corrosion-resistant Type 316 stainless steel
  • Includes a 3/4-inch plywood panel for mounting equipment

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
356
Protection Rating
NEMA Type 12
Color
Light Gray
Thickness (T)
3.5
Mounting (G x H)
430 x 305
IP Rating
IP66
Height
16 in
Depth
8 in
NEMA Rating
4X Watertight, corrosion-resistant
Height (H)406
Depth (D)203
FinishSmooth Matte
Color CodeRAL 7035
Panel Size (D x E)375 x 327
Overall Dimensions (L x W)420 x 370
Weight13.2
Width14 in
MaterialFiberglass

Downloads
