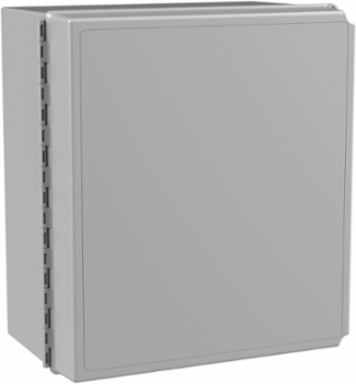

nVent Hoffman D181610CHSCFGP Hinge-Cover WiFi Enclosure 18x16x10 Inch, Fiberglass, IP66, NEMA 4X
- MPN: D181610CHSCFGP
- UPC: 783510149659
- PPN: HOF-D181610CHSCFGP
- UNSPSC: 43223306
CAD
$533.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Fiberglass WiFi Enclosure is a secure, hinged enclosure that does not impede WiFi or WLAN signals. This Hinge-Cover WiFi Type 4X, D181610CHSCFGP item measures 18.00x16.00x10.00in. with a material of Fiberglass colored Lt Gray.
Features
- Fiberglass is easily punched, drilled, filed or sawed
- Seamless foam-in-place gasket assures watertight and dusttight seal
- Molded-in-place threaded brass inserts and plated steel screws are provided for mounting optional panels and terminal block kits
- Removable hinged cover attached to body with Type 316 stainless steel hinge pin
- Screw cover enclosures are secured with two captivated Type 316 stainless steel slotted cross-point cover screws
- Available quick-release latches are corrosion-resistant polyester located in corners to provide unobstructed access to enclosure
- Enclosure and door made of molded fiberglass polyester that resists chemicals and temperature change
- Scratch-resistant polycarbonate windows are permanently bonded in place
- Polyester mounting brackets and stainless steel attachment screws are provided with each enclosure
- Hinge pin and bail are corrosion-resistant Type 316 stainless steel
- Includes a 3/4-inch plywood panel for mounting equipment
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 406 |
| Protection Rating | NEMA Type 12 |
| Color | Light Gray |
| Thickness (T) | 3.5 |
| Mounting (G x H) | 481 x 356 |
| IP Rating | IP66 |
| Height | 18 in |
| Depth | 10 in |
| NEMA Rating | 4X Watertight, corrosion-resistant |
| Height (H) | 457 |
|---|---|
| Depth (D) | 254 |
| Finish | Smooth Matte |
| Color Code | RAL 7035 |
| Panel Size (D x E) | 425 x 378 |
| Overall Dimensions (L x W) | 472 x 421 |
| Weight | 18.3 |
| Width | 16 in |
| Material | Fiberglass |
