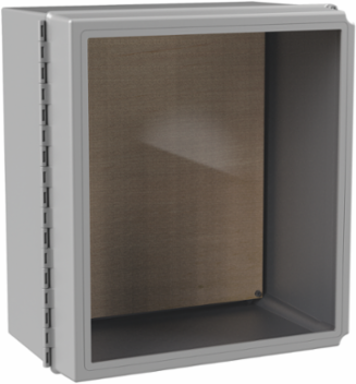

nVent Hoffman D181610CHSCFGWP Hinge-Cover WiFi Enclosure, 18 x 16 x 10 Inch, Fiberglass, NEMA 4X
- MPN: D181610CHSCFGWP
- UPC: 783510149666
- PPN: HOF-D181610CHSCFGWP
- UNSPSC: 43223306
CAD
$759.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Fiberglass WiFi Enclosure is a secure, hinged enclosure that does not impede WiFi or WLAN signals. This Hinge-Cover WiFi Type 4X Window Door, D181610CHSCFGWP item measures 18.00x16.00x10.00in. with a material of Fiberglass colored Lt Gray.
Features
- Fiberglass is easily punched, drilled, filed or sawed
- Seamless foam-in-place gasket assures watertight and dusttight seal
- Molded-in-place threaded brass inserts and plated steel screws are provided for mounting optional panels and terminal block kits
- Removable hinged cover attached to body with Type 316 stainless steel hinge pin
- Screw cover enclosures are secured with two captivated Type 316 stainless steel slotted cross-point cover screws
- Available quick-release latches are corrosion-resistant polyester located in corners to provide unobstructed access to enclosure
- Enclosure and door made of molded fiberglass polyester that resists chemicals and temperature change
- Scratch-resistant polycarbonate windows are permanently bonded in place
- Polyester mounting brackets and stainless steel attachment screws are provided with each enclosure
- Hinge pin and bail are corrosion-resistant Type 316 stainless steel
- Includes a 3/4-inch plywood panel for mounting equipment
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 406
- Protection Rating
- NEMA Type 12
- Color
- Light Gray
- Thickness (T)
- 3.5
- Mounting (G x H)
- 481 x 356
- IP Rating
- IP66
- Weight
- 18
Height (H)457
Depth (D)254
FinishSmooth Matte
Color CodeRAL 7035
Panel Size (D x E)425 x 378
Overall Dimensions (L x W)472 x 421
NEMA Rating4X Watertight, corrosion-resistant
MaterialFiberglass
