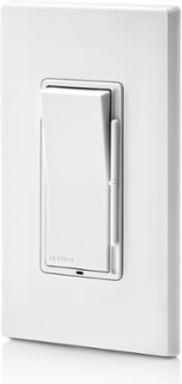

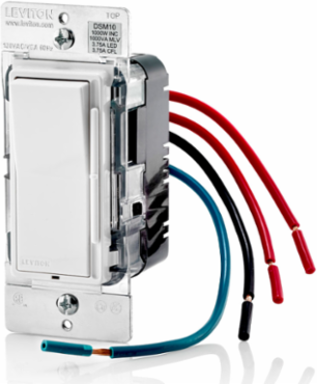

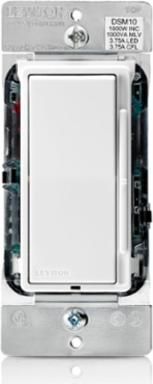

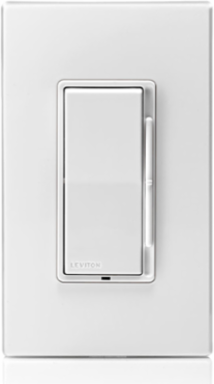

Leviton DSM10-1LZ Decora Slide Dimmer Switch 1000W/450W for LED/CFL & Incandescent, Single-Pole
- MPN: DSM10-1LZ
- UPC: 078477692332
- PPN: LEV-DSM10-1LZ
CAD
$99.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Universal Decora Dimmable LED, CFL, MLV and Incandescent Rocker- Slide Dimmer, 1000W-120VAC Incandescent, 1000VA-120VAC MLV, 450W-120VAC Dimmable LED and CFL, 60Hz, Single Pole or 3-Way - White, Ivory & Light Almond
Features
- New aesthetically pleasing design with rocker switch and slender dimmer control slide bar
- Integrated linear full-range slide control for easy, precise operation
- Controls a variety of dimmable LED and CFL lamps
- Compatible with Magnetic Low Voltage loads, Incandescent and Halogen lamps
- Single pole or 3-way operation (when using 3-way switch); packaged with White, Ivory, and Light Almond color change kits
- Additional color change kits available in Black, Brown, Red and Gray
- Slim, compact housing fits easily into a standard wallbox and is suitable for multi-gang installations with other Decora products
- The slide bar location preserves the selected brightness level when the dimmer is switched OFF
- Microprocessor control offers flexibility to program LEDs and CFLs for best performance
- Switch under the color change kit to turn locator light ON/OFF
- No fins for multi-gang installation
- Wired using leads, a Neutral wire is not required for operation
- Built-in radio/TV interference filter
- Leviton Decora Rocker-Slide Universal Dimmers provide smooth, slide-action, full-range dimming for Incandescent, Magnetic Low Voltage, dimmable LEDs and dimmable CFL loads. They combine a Decora rocker switch with a contemporary full-range slender slide bar for precise lighting control. With a new, streamlined style, Decora dimmers and fan speed control complement any interior design and are compatible with other Decora devices.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Product Features
- Action
- Rocker Switch for ON/OFF, slide bar for lighting level control
- Color
- White, Ivory, Light Almond
- Light
- Locator light that can be turned off
- Load Type
- Incandescent, Dimmable LED, Dimmable CFL, Magnetic Low Voltage
- Preset
- Slide bar preserves desired lighting level
- Standards and Certifications
- cCSAus, NOM
- Switch Type
- Single-Pole & 3-Way
- Voltage
- 120 VAC
- Warranty
- 5-Year Limited
Available ColorsIvry-I Wht-W Gry-G Blk-E Brwn-B Light Almond-T, R-Red
Frequency60 Hz
Load Rating1000W Incandescent, 1000VA MLV, 450W LED and CFL
Ordering NotesIncluded White, Ivory and Light Almond Color Kit
ProtectionRadio/TV Filter
Style NameDecora
TypeDimmer
WallplateOrder Separately
