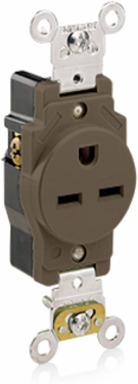

Leviton 5661 15 Amp Industrial Grade Self-Grounding Receptacle, NEMA 6-15R, 250V, Brown
- MPN: 5661
- UPC: 078477130414
- PPN: LEV-5661
CAD
$20.84
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

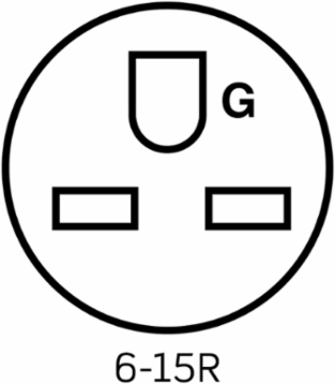

Single Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 15 Amp, 250 Volt, Back or Side Wire, NEMA 6-15R, 2-Pole, 3-Wire, Self-Grounding - Brown
Features
- Leviton's line of Heavy-Duty Industrial Grade Receptacles are available with a number of wiring options and features. These heavy-duty receptacles are engineered for fine appearance and top performance in demanding commercial and institutional applications using a durable, thermoplastic face and impact-resistant construction.
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- Horsepower Rating
- 1-1/2 HP
- Temperature Rise
- Max 30C after 250 cycles OL at 200% rated current
- Poles
- 2
- Grounding
- Self-Grounding
- Clamp Nuts Material
- Galvanized Steel
- Grounding Screw Material
- Plated Steel
- Strap Material
- Zinc-Plated Steel
- Operating Temperature
- -40°C to 60°C
- Torque Range
- 14-16 inch pounds
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Grade
- Heavy-Duty Industrial Specification Grade
- Face Type
- Smooth Face
- UL498
- File E13399
- UL Fed Spec WC-596
- File E13399
- ANSI
- C-73
Voltage250 VAC
Current LimitingFull Rated Current
NEMAWD-6
Wires3
MaterialThermoplastic Nylon
Ground Clips MaterialBrass
Line Contacts MaterialBrass Triple-Wipe
Terminal Screws MaterialPlated Brass
Flammability RatingV-2 per UL 94
Terminal Accommodation14-10 AWG
TerminationBack or Side Wire
Face MaterialThermoplastic Nylon
RoHS CompliantTrue
CSA C22.2 No. 42File 152105
NOM057
Country of OriginPlease Contact Customer Service
