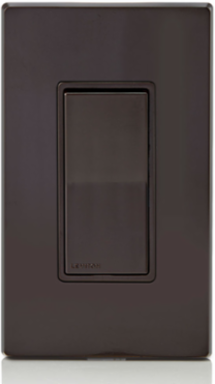

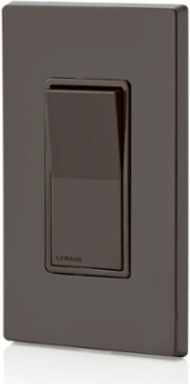

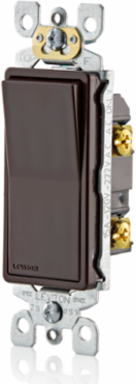

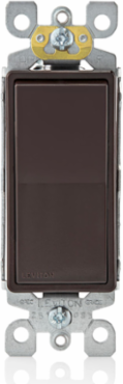

Leviton 5601-P02 15 Amp Single-Pole Decora Switch, 120/277 Volt, Brown
Leviton 5601-P02 15 Amp Single-Pole Decora Switch, 120/277 Volt, Brown
- MPN: 5601-P02
- UPC: 078477339558
- PPN: LEV-5601-P02
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2.18/ EA
Description
15 Amp, 120/277 Volt, Decora Rocker Single-Pole AC Quiet Switch, Residential Grade, Self-grounding - Brown
Features
- Switch frame shields against dust and fits in wallplate to prevent rocker binding
- Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
- Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
- Sturdy construction for long service life
- Full-rated current capacity with tungsten, fluorescent or resistive loads
- Self-grounding when installed in a properly grounded metal box
- Complements every décor
- Limited 2-year warranty
- NOTE: In Canada, a general-use switch does not require attachment to a grounding/bonding wire when installed in a grounded/bonded flush device box.
- CONVENIENT - Quiet switch controls load from a single location
- DURABLE - Impact-resistant thermoplastic nylon construction
- EASY - Quick wire push-in and side wiring for easy installation
- COMPATIBLE - For use with Leviton Decora wallplates
Specifications
Product Features
- Actuator Material
- Thermoplastic
- Body Material
- Thermoplastic
- Grounding
- Grounding Strap with Clip
- Pole
- 1
- Strap Material
- Steel
- Termination
- Quickwire Push-In & Side
- Type
- Rocker Switch
- Warranty
- 2-Year Limited
Amperage15 A
ColorBrown
HP Rating1/2HP-120V 2HP-240V-277V Max 12 Amp
Standards and CertificationsUL/CSA
Terminal Accom.Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
Torque Range14 – 18 in.-lbs
Voltage120/277 VAC
Specifications
- Country of Origin
- United States
RoHS CompliantFalse
