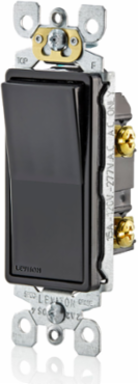

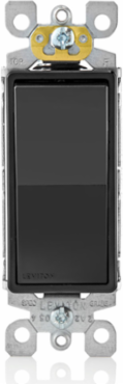

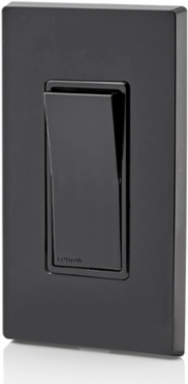

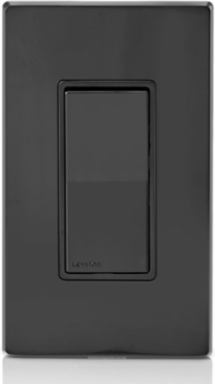

Leviton 5601-P2E 15 Amp Decora Rocker Switch, Self-Grounding, 120/277 Volt, Black
- MPN: 5601-P2E
- UPC: 078477339671
- PPN: LEV-5601-P2E
CAD
$2.21
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
15 Amp, 120/277 Volt, Decora Rocker Single-Pole AC Quiet Switch, Residential Grade, Self-grounding - Black
Features
- Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
- Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
- NOTE: In Canada, a general-use switch does not require attachment to a grounding/bonding wire when installed in a grounded/bonded flush device box.
- CONVENIENT - Quiet switch controls load from a single location
- DURABLE - Impact-resistant thermoplastic nylon construction
- EASY - Quick wire push-in and side wiring for easy installation
- COMPATIBLE - For use with Leviton Decora wallplates
Documentation & Downloads
Specifications
Additional
| Voltage | 120/277 VAC |
|---|---|
| HP Rating | 1/2HP-120V 2HP-240V-277V Max 12 Amp |
| Type | Rocker Switch |
| Termination | Quickwire Push-In & Side |
| Grounding | Grounding Strap with Clip |
| Body Material | Thermoplastic |
| Color | Black |
| RoHS Compliant | False |
| Amperage | 15 A |
|---|---|
| Pole | 1 |
| Torque Range | 14 18 in.-lbs |
| Terminal Accommodation | Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only |
| Strap Material | Steel |
| Actuator Material | Thermoplastic |
| Standards and Certifications | UL/CSA |
| Country of Origin | United States |
