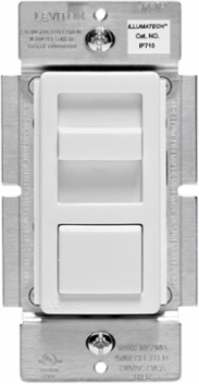

Leviton IP710-LFZ IllumaTech 0-10V Dimmer Switch, 1200VA, Dual Voltage 120/277VAC
- MPN: IP710-LFZ
- UPC: 078477620496
- PPN: LEV-IP710-LFZ
CAD
$251.36
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
IllumaTech Slide Preset USMCA Compliant Electro-Mechanical 0-10V Slide Dimmer for use with LED or Fluorescent Ballasts and Power Supplies, suitable for use with Class 1 or Class 2 wiring, 1200VA @ 120VAC, 1500VA @ 277VAC, 10A LED/Electronic Ballast 120/277VAC, 60Hz, 50mAmps maximum sinking current, single pole or 3-way control when used with 3-way switch - White, Ivory & Light Almond
Features
- Designed specifically for use with LED fixtures using 0-10V power supplies and Mark 7® 0-10V fluorescent ballasts
- Dual voltage 120V/277V; 50mAmps maximum sink current
- No power pack required for switching
- Provides single pole or 3-way lighting control when used with a 3-way switch
- Compatible with Decora Plus™ screwless and Decora standard designer wallplates (sold separately)

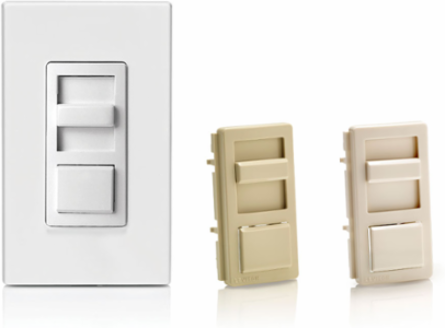

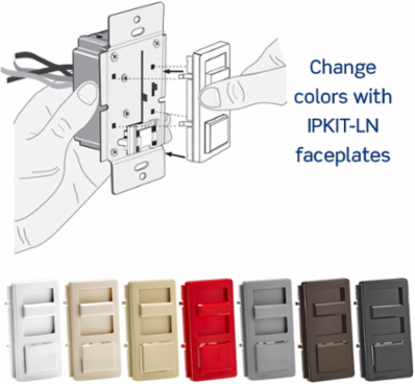

- Change the color using IPKIT-LN faceplates available in white, ivory, light almond, gray, black, brown and red

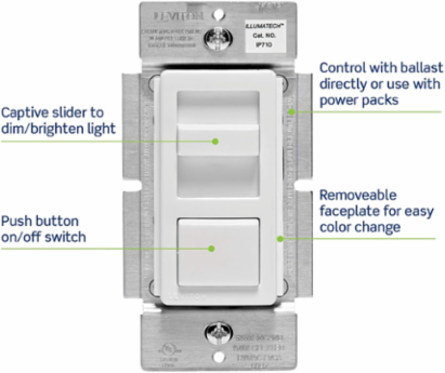

- Fluid slide movement allows fine adjustment of light level with minimal effort
- Captive wraparound slide bar remains securely attached
- INNOVATIVE – Designed for use with LED fixtures using 0-10V power supplies for dimming lighting in commercial spaces such as hotels, restaurants, offices and other public spaces
- ADVANCED – No power pack required for switching
- EXCEPTIONAL – Superior quality and dimming performance
- CONVENIENT – Separate on/off switch allows you to set and keep preferred dimming level
- STYLISH - Easily change the color using IPKIT-LN faceplates available in white, ivory, light almond, gray, black, brown and red
Documentation & Downloads
Specifications
Additional
- Voltage
- 120/277 VAC
- Frequency
- 60 Hz
- Switch Type
- Single-Pole & 3-Way
- Dimming Type
- 0-10V Slide Dimmer
- Wattage
- 1200 VA @ 120 VAC, 1500 VA @ 277 VAC
- Material
- Electro-Mechanical
- Non-Operating Temperature
- 10°C to 85°C
- Color
- White, Ivory, Light Almond
- Color Change Kit
- IPKIT Series
- Standards and Certifications
- cCSAus
- RoHS Compliant
- False
- Style Name
- IllumaTech
Load Rating1200 VA
Load TypeElectronic 0-10VDC Fluorescent and 0-10VDC LED Power Supply
Control TypeSingle pole or 3-way
ActionStandard ON/OFF
ProtectionRadio/TV Filter
Operating Temperature0°C to 55°C
Relative Humidity20% to 90%, non-condensing
Available Color KitsIvory, White, Gray, Black, Brown, Light Almond, Red

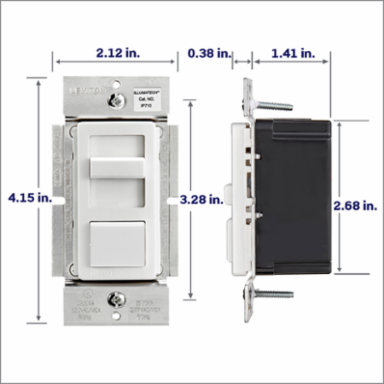

MountingFits standard wallbox, multi-gang suitable
USMCA CompliantYes
Country of OriginMexico
