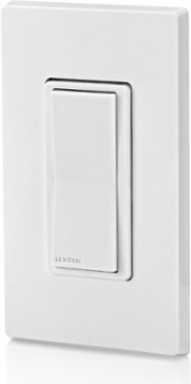

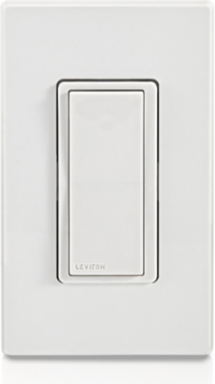

Leviton ZW15S-1RW Decora Smart Switch, Z-Wave 800 Series, Neutral Wire Required
- MPN: ZW15S-1RW
- UPC: 078477398463
- PPN: LEV-ZW15S-1RW
CAD
$132.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Decora Smart Switch, Z-Wave 800 Series. 15A General Use, 5A LED, 5A CFL, 5A Electronic Ballast, 1500W Incandescent/Halogen, 15A Magnetic Ballast, 3/4 HP Motor, wallplate included - White
Features
- Never come home to dark house again - schedule exterior lights to turn on at sunset
- Know if lights are on and adjust whether you're home, at work, or on vacation - control from anywhere using a compatible Z-Wave hub
- Use your voice for control without lifting a finger - using a compatible Z-Wave hub

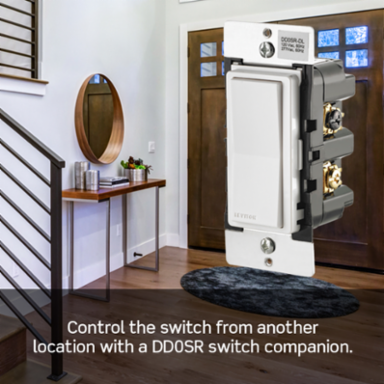

- Control this switch from another wall location in your home - pairs with DD0SR Wired Switch Companion
- Increase the reliability of your Z-Wave network - acts as a repeater to strengthen your Z-Wave Mesh network
- One switch does it all - supports loads up to 15A and 3/4 HP for control of lights, ceiling fans, exhaust fans, motors, pumps, and more
- Remote access, voice command, and scheduling - as part of a Z-Wave smart home solution
- Easy Install - replaces your existing switch; wire leads and slim design make install a breeze
- Single Pole or 3-Way - works with DD0SR Wired Switch Companion

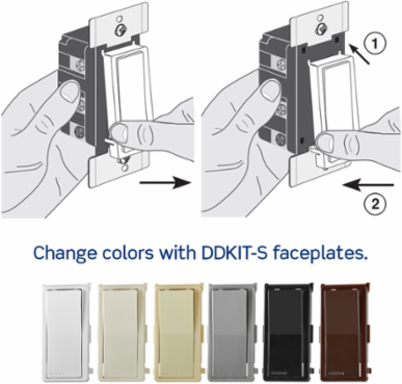

- Change the color - Change the switch faceplate color to black, gray, brown, light almond, ivory or white using DDKIT-S TECH SPECS

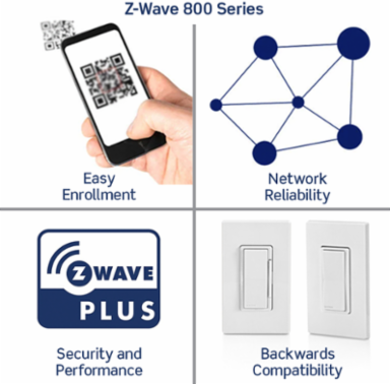

- Supports Z-Wave 8th generation mesh wireless for control of connected lighting with certified Z-Wave hubs
- Compatible with any Z-Wave enabled network; works with other devices displaying the Z-Wave logo; backwards compatible with all generations of Z-Wave devices
- Meets the Z-Wave specification for the latest in speed, performance, and security
- Supports SmartStart enrollment when used with a Z-Wave controller that supports SmartStart inclusion.
- Also supports Network wide inclusion, and Classic inclusion enrollment methods
- Supports S2 Security and Z-Wave Over-the-Air updates
- Z-Wave Plus Network - 908.40, 908.42, 916.00 MHz
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Standards and Certifications
- Standards and Certifications
- UL, FCC, CSA, IC, Z-Wave Plus
Material Specifications
- Color
- White
- Strap Material
- Metal
Optional Color Change Kits AvailableYes, DDKIT-S in Black, White, Light Almond, Ivory, Gray, and Brown
Product Features
- Brand
- Decora Smart Z-Wave
- Grade
- Residential
Device TypeIn-Wall Smart Switch
Hub RequiredYes
Warranty
- Warranty
- 2-Year Limited
Environmental Specifications
- Operating Humidity
- – 10% to 90% non-condensing
Operating Temperature0°C to 40°C (32° – 104° F)
Electrical Specifications
- Load Rating
- 15A General Use, 5A LED/CFL, 5A Electronic Ballast, 1500W Incand/ Halogen 15A Magnetic Ballast, 3/4 HP Motor
- Termination Type
- Wire Leads
Neutral RequiredYes
