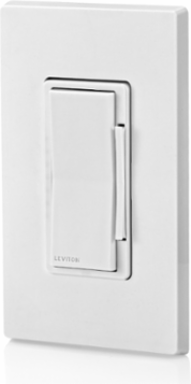

Leviton ZW6HD-1RW Decora Smart Dimmer Switch, Z-Wave 800 Series, Neutral Wire Required
- MPN: ZW6HD-1RW
- UPC: 078477398487
- PPN: LEV-ZW6HD-1RW
CAD
$103.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

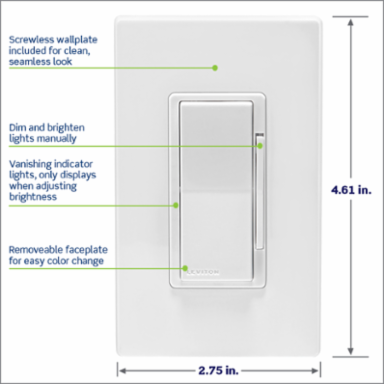

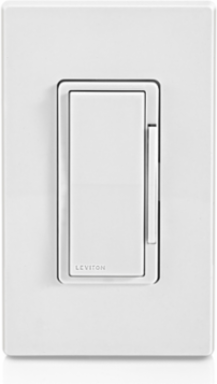

Decora Smart Dimmer, Z-Wave 800 Series. 300W LED, 300W CFL, 600W Incandescent/Halogen, 600VA Magnetic Low Voltage, wallplate included - White
Features
- Create an elegant ambiance - set the mood for dinner, dim the lights to create a movie theatre experience, turn the lights down low to wind down for bedtime
- Know if lights are on and adjust them whether you’re home, at work, or on vacation - control from anywhere using a compatible Z-Wave hub
- Personalize your lighting - customizable fade rates that gradually turn lighting on or off, or preset light level options to make sure lights always come on at the level you want
- Use your voice for control without lifting a finger - using a compatible Z-Wave hub
- Prevent flickering lights - designed for compatibility with dimmable LED bulbs and fixtures with settings to fine-tune performance

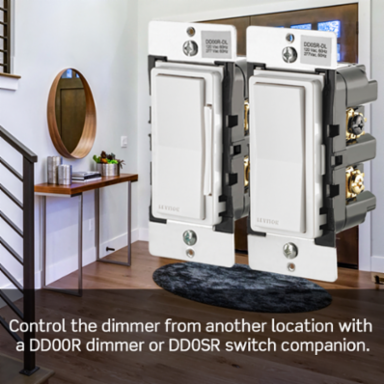

- Control this dimmer from another wall location in your home - pairs with DD00R or DD0SR Wired Dimmer or Switch Companions
- Increase the reliability of your Z-Wave network - acts as a repeater to strengthen your Z-Wave Mesh network
- Full range dimming - on/off and dim/bright control of dimmable LED, CFL, Incandescent, Halogen, and MLV lighting
- Remote access, voice command, and scheduling - as part of a Z-Wave smart home solution
- Easy Install - replaces your existing switch; wire leads and slim design make install a breeze
- Let there be light - double press the top rocker to quickly snap on at maximum brightness
- Lights won’t glow when you turn the dimmer off - “Off Means Off” technology ensures low-wattage LED bulbs don’t glow in the off state
- Single Pole or 3-Way - works with DD00R Wired Dimmer Companion or a DD0SR Wired Switch Companion

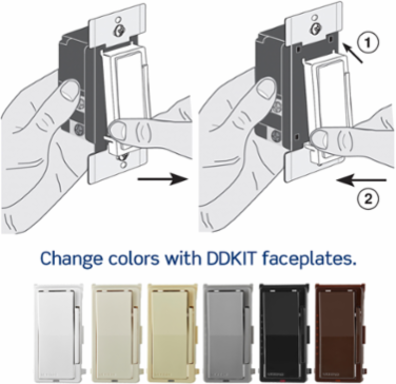

- Change the color – Change the dimmer faceplate color to black, gray, brown, light almond, ivory or white using DDKIT TECH SPECS

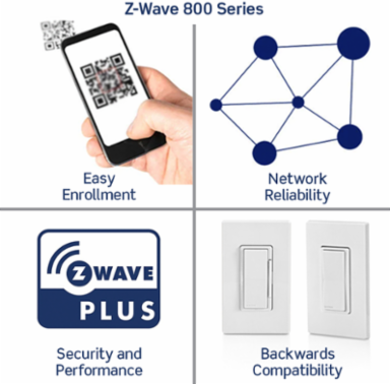

- Supports Z-Wave 8th generation mesh wireless for control of connected lighting with certified Z-Wave hubs
- Compatible with any Z-Wave enabled network; works with other devices displaying the Z-Wave logo; backwards compatible with all generations of Z-Wave devices
- Meets the Z-Wave specification for the latest in speed, performance, and security
- Supports SmartStart enrollment when used with a Z-Wave controller that supports SmartStart inclusion.
- Also supports Network wide inclusion, and Classic inclusion enrollment methods
- Supports S2 Security and Z-Wave Over-the-Air updates
- Z-Wave Plus Network - 908.40, 908.42, 916.00 MHz
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Standards and Certifications
- Standards and Certifications
- UL, FCC, CSA, IC, Z-Wave Plus
Material Specifications
- Color
- White
- Strap Material
- Metal
Optional Color Change Kits AvailableYes, DDKIT in Black, White, Light Almond, Ivory, Gray, and Brown
Product Features
- Brand
- Decora Smart Z-Wave
- Grade
- Residential
Device TypeIn-Wall Smart Dimmer
Hub RequiredYes
Warranty
- Warranty
- 2-Year Limited
Environmental Specifications
- Operating Humidity
- – 10% to 90% non-condensing
Operating Temperature0°C to 40°C (32° – 104° F)
Electrical Specifications
- Load Rating
- 300W LED/CFL, 600W Incand/ Halogen, 600VA Magnetic Low Voltage
