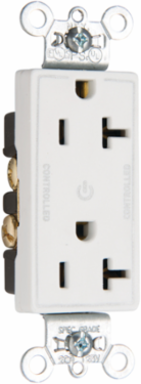

Pass & Seymour 26352CDW 20A 125V Dual-Controlled Duplex Receptacle, White, 1.322 Inch Width
Pass & Seymour 26352CDW 20A 125V Dual-Controlled Duplex Receptacle, White, 1.322 Inch Width
- MPN: 26352CDW
- UPC: 785007032635
- PPN: P-S-26352CDW
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$12.52/ EA
Description
This durable, dependable Plug Load receptacle is designed to help you meet ASHRAE energy standards. The controlled marking printed on the tough nylon face is both NEMA-approved and compliant with the National Electrical Code.
Features
- NEMA approved controlled receptacle marking pad printed on the face of receptacle for superior abrasion resistance.
- Can be used to control loads using the Wattstopper DLM system and other building control systems.
- Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body.
- One-piece, brass, triple-wipe power contacts for lasting retention.
- Heavy-duty compact design for easier installation and long lasting performance.
- Terminal compartments isolated from each other for positive conductor containment.
- Side and internal screw-pressure-plate back wire accepts #14 - #10 AWG solid or stranded wire.
- All devices fit standard #26 opening wall plate.
Specifications
Specifications
- Depth
- 0.78 in
- Color
- White
- Finish
- Matte
- Product Line
- Pass & Seymour
- Voltage
- 125.0 V
- Features
- Plugload
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Number of Receptacles
- 2.0
- Number of Poles
- Double Pole
- NEMA Configuration Code
- 5-20R
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
Height2.635 in
Width1.322 in
Country of OriginMexico
Amperage20.0 A
StandardFEDSPEC
Number of Wires3.0
Wire Size14 - 10 AWG
FeaturesDual-Controlled
Outlet TypeStraight Blade
Application SectorCommercial
Outlet TypeEnergy Saving On/Off
Wire Connection TypeScrew Terminals
Wire Connection TypeInternal Pressure Plates
