Pass & Seymour 26352CDI 20A 125V Dual-Controlled Duplex Receptacle, Ivory, 1.322 Inch Width
- MPN: 26352CDI
- UPC: 785007032796
- PPN: P-S-26352CDI
CAD
$13.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

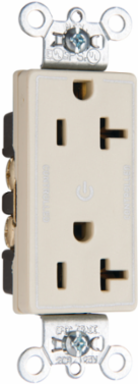

20A 125V Dual-Controlled Duplex Receptacle, Ivory, 1.322 Inch Width
Features
- NEMA approved controlled receptacle marking pad printed on the face of receptacle for superior abrasion resistance.
- Can be used to control loads using the Wattstopper DLM system and other building control systems.
- Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body.
- One-piece, brass, triple-wipe power contacts for lasting retention.
- Heavy-duty compact design for easier installation and long lasting performance.
- Terminal compartments isolated from each other for positive conductor containment.
- Side and internal screw-pressure-plate back wire accepts #14 - #10 AWG solid or stranded wire.
- All devices fit standard #26 opening wall plate.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.78 in
- Color
- Ivory
- Product Line
- Pass & Seymour
- Country of Origin
- Mexico
- Standard
- FEDSPEC
- Number of Wires
- 3.0
- Wire Size
- 14 - 10 AWG
- Features
- Dual-Controlled
- Outlet Type
- Straight Blade
- NEMA Configuration Code
- 5-20R
- Outlet Type
- Energy Saving On/Off
- Wire Connection Type
- Screw Terminals
- Wire Connection Type
- Internal Pressure Plates
Height2.635 in
Width1.322 in
Amperage20.0 A
Voltage125.0 V
FeaturesPlugload
Indoor/OutdoorIndoor
Wall Plate IncludedNo
Number of Receptacles2.0
Number of PolesDouble Pole
Application SectorCommercial
Connection LocationBack and Side
Warranty Type1-Year Limited Warranty
