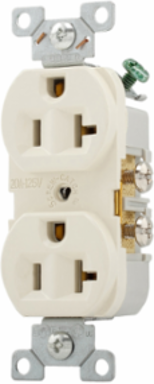

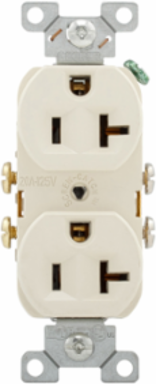

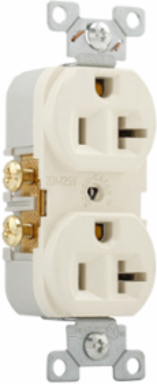

Cooper Wiring Devices CR20LA Duplex Receptacle, Commercial Grade, 20A, 125V, NEMA 5-20R, Light Almond (CR20LA)
- MPN: CR20LA
- UPC: 032664583162
- PPN: COW-CR20LA
CAD
$2.26
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Eaton commercial specification grade duplex receptacle, #14-10 AWG, 20A, Commercial, Flush, 125V, Side wire, Light almond, Brass, High-impact nylon, PVC, 5-20R, Duplex, Screw, PVC, Core pack
Documentation & Downloads
Specifications
Key Specifications
- Amperage Rating
- 20A
- NEMA Configuration
- 5-20R
- Number of Wires
- 3
- Length
- 1.24 in
- Width
- 0.79 in
- Allowable Wire Size
- #10-14 AWG Copper or Copper Clad Aluminum
- Connection Type
- Screw
- Face/Body Material
- High-impact nylon
- Design Type
- Straight blade
- Application
- Commercial
Voltage Rating125V
Number of PolesTwo-pole
Torque Rating14 lbf-inch
Height4 in
Wiring MethodSide wire
Mounting MethodFlush
Contact MaterialBrass
ColorLight almond
Federal SpecificationClassification 6233 01
Receptacle TypeDuplex
