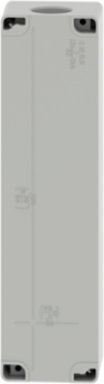

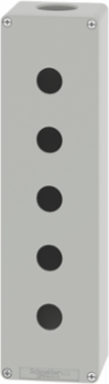

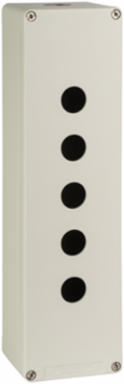

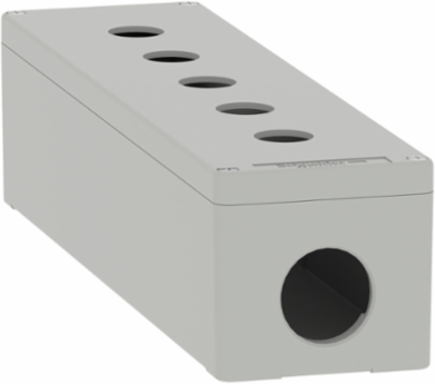

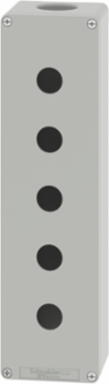

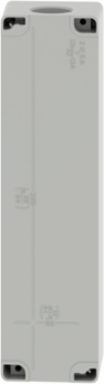

Schneider Electric XAPG59505 Die-Cast Empty Control Station with 5 Cut-Outs, Ø 22 mm, IP65, 0.830 kg
- MPN: XAPG59505
- PPN: SCH-XAPG59505
CAD
$218.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This grey empty control station enables machine builders to customize their machines by easily adding any control and signalling functionality units on the enclosure according to the operation required It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65 / IP, making it ideal for operation in harsh environments It is compatible with Harmony 22mm range pushbuttons, switches and pilot lights
Documentation & Downloads
Specifications
Key Specifications
- Product Destination
- for Ø 22 mm control and signalling units
- Number Of Cut-Out
- 5 cut-outs
- Range Of Product
- Harmony XAP
- Product Or Component Type
- die-cast empty control station
- Material
- die cast aluminium
- Ip Degree Of Protection
- IP65 IEC 60529
Colour Of Covergrey RAL 7032)
Sale Per Indivisible Quantity1
Colour Of Base Of Enclosuregrey RAL 7032)
Resistance To Chemical Agentsspecial treatment can be obtained on request
Device Short NameXAPG
Control Station Typemetal
Complementary
- Thread Type
- 3/4 NPT
- Number Of Horizontal Rows
- 5
- Compatibility Code
- XAPG
- Cad Overall Width
- 85 mm
- Net Weight
- 0.830 kg
Cut-Out DimensionsØ 22 mm
Number Of Vertical Rows1
Cable Entrycable gland || 1 x cable gland
Cad Overall Depth77 mm
Cad Overall Height310 mm
Environment
- Ik Degree Of Protection
- IK07 IEC 62262
- Ambient Air Temperature For Storage
- -40-70 °C
- Protective Treatment
- TH
Ambient Air Temperature For Operation-25-70 °C
Electrical Shock Protection Classclass I IEC 60536 || class I NF C 20-030
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2111017EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
