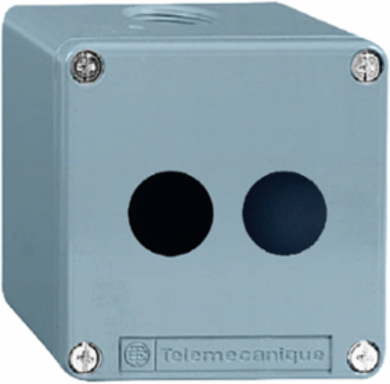

Harmony XAP Empty Control Station, Die-Cast Zinc, IP65/IP67, 2 Cut-Outs, 22mm
Schneider Electric

Schneider Electric XAPG29202 Harmony XAP Empty Control Station, Die-Cast Zinc, IP65/IP67, 2 Cut-Outs, 22mm

  • MPN: XAPG29202
  • PPN: SCH-XAPG29202

CAD

$120.28

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

This product is part of the Harmony XAP range, an offer of metal enclosures." "The empty control station has 2 cutouts with 22mm diameter and 1 cable gland." "It is constructed with 1 vertical row and 2 horizontal rows." "It is an IP65 and IP67 rated product." "The enclosure is made of die-cast zinc and available in grey color. Its dimensions are 80mm (width) x 51.5mm (depth) x 130mm (height). It weighs 0.61kg." "It is suitable for automotive, textiles, timber, energy distribution, public works, building and airport applications." "This product is certified by CSA." "It is compatible with the XB4 range Ø 22mm control and signaling units." "Harmony XAM, XAP industrial IP67 enclosures combines simple installation, configuration flexibility and robust construction." "The Harmony XAM, XAP range of insulated or metal enclosures designed for use in severe environments."

Documentation & Downloads

Specifications

Key Specifications

Product Destination
for Ø 22 mm control and signalling units
Colour Of Base Of Enclosure
grey RAL 7032)
Material
die cast zinc
Control Station Type
metal
Number Of Cut-Out
2 cut-outs
Resistance To Chemical Agents
special treatment can be obtained on request
Range Of ProductHarmony XAP
Product Or Component Typedie-cast empty control station
Ip Degree Of ProtectionIP65 IEC 60529 || IP657 IEC 60529
Colour Of Covergrey RAL 7032)
Sale Per Indivisible Quantity1
Device Short NameXAPG

Complementary

Number Of Horizontal Rows
2
Cable Entry
cable gland || 1 x cable gland
Cad Overall Height
130 mm
Cut-Out Dimensions
Ø 22 mm
Cad Overall Width
80 mm
Number Of Vertical Rows1
Net Weight0.610 kg
Thread Type3/4 NPT
Compatibility CodeXAPG
Cad Overall Depth51.5 mm

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP2111017EN
Toxic Heavy Metal Free
Yes
Reach Free Of Svhc
Yes
Circularity Profile
N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Environment

Ik Degree Of Protection
IK07 IEC 62262
Ambient Air Temperature For Storage
-40-70 °C
Protective Treatment
TH
Ambient Air Temperature For Operation-25-70 °C
Electrical Shock Protection Classclass I IEC 60536 || class I NF C 20-030
