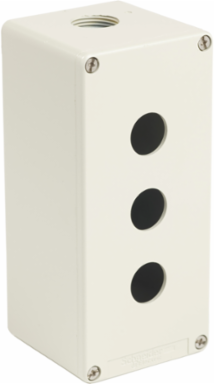

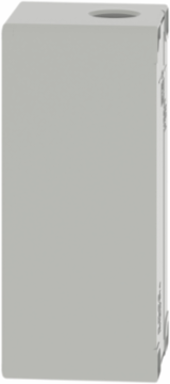

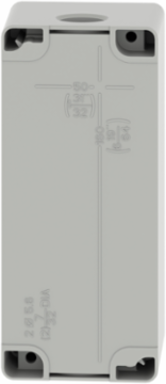

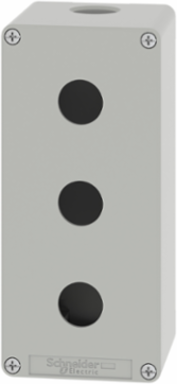

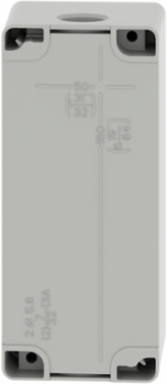

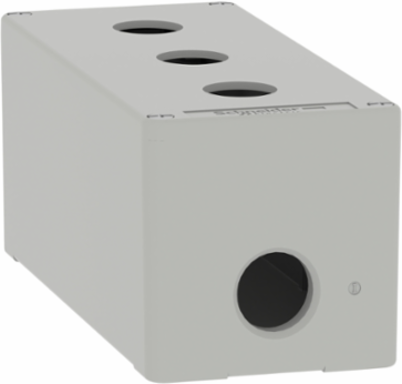

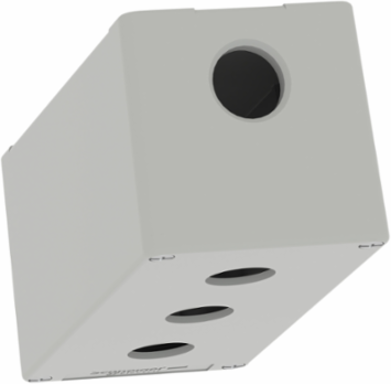

Schneider Electric XAPG39503 Die-Cast Control Station, Grey, 3 Cut-Outs, IP65, 80mm x 175mm x 77mm

  • MPN: XAPG39503
  • PPN: SCH-XAPG39503

CAD

$142.14

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

This product is part of the Harmony XAP range, an offer of metal enclosures." "The empty control station has 3 cutouts with 22mm diameter and 1 cable gland." "It is constructed with 1 vertical row and 3 horizontal rows." "It is an IP65 and IP67 rated product." "The enclosure is made of die-cast zinc and available in grey color. Its dimensions are 80mm (width) x 77mm (depth) x 175mm (height). It weighs 1.145kg." "It is suitable for automotive, textiles, timber, energy distribution, public works, building and airport applications." "This product is certified by CSA." "It is compatible with the XB4 range Ø 22mm control and signaling units." "Harmony XAM, XAP industrial IP67 enclosures combines simple installation, configuration flexibility and robust construction." "The Harmony XAM, XAP range of insulated or metal enclosures designed for use in severe environments."

Documentation & Downloads

Specifications

Key Specifications

Product Destination
for Ø 22 mm control and signalling units
Number Of Cut-Out
3 cut-outs
Range Of Product
Harmony XAP
Product Or Component Type
die-cast empty control station
Material
die cast zinc
Ip Degree Of Protection
IP65 IEC 60529
Colour Of Covergrey RAL 7032)
Sale Per Indivisible Quantity1
Colour Of Base Of Enclosuregrey RAL 7032)
Resistance To Chemical Agentsspecial treatment can be obtained on request
Device Short NameXAPG
Control Station Typemetal

Complementary

Thread Type
3/4 NPT
Number Of Horizontal Rows
3
Compatibility Code
XAPG
Cad Overall Width
80 mm
Net Weight
1.145 kg
Cut-Out DimensionsØ 22 mm
Number Of Vertical Rows1
Cable Entrycable gland || 1 x cable gland
Cad Overall Depth77 mm
Cad Overall Height175 mm

Offer Sustainability

China Rohs Regulation
X
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP2111017EN
Toxic Heavy Metal Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes

Environment

Ik Degree Of Protection
IK07 EN/IEC 62262
Ambient Air Temperature For Storage
-40-70 °C
Protective Treatment
TH
Ambient Air Temperature For Operation-25-70 °C
Electrical Shock Protection Classclass I IEC 60536 || class I NF C 20-030
