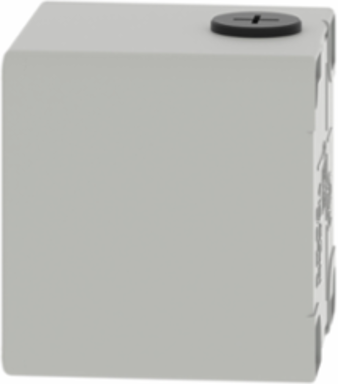

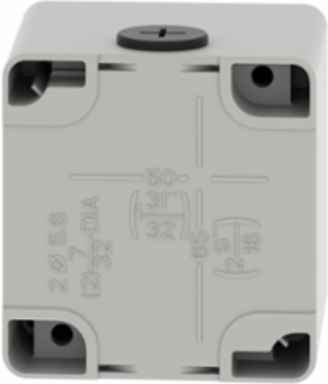

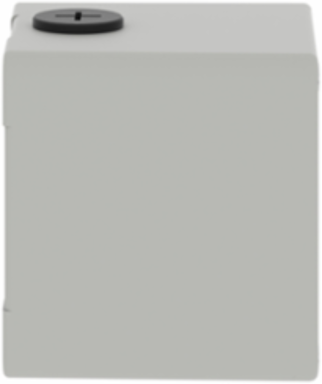

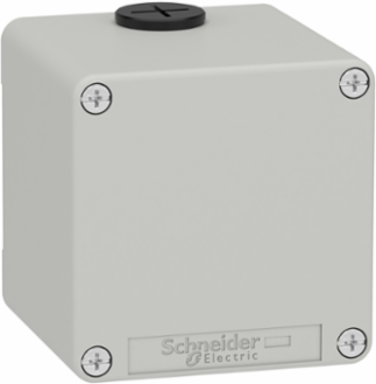

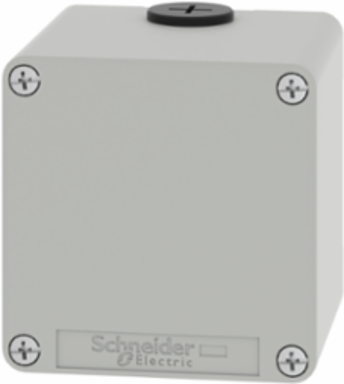

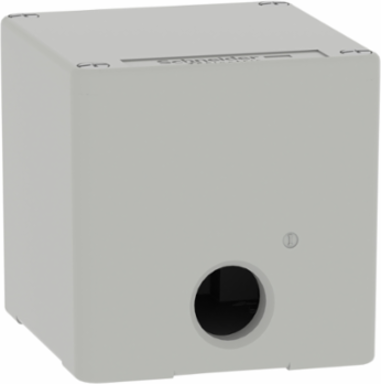

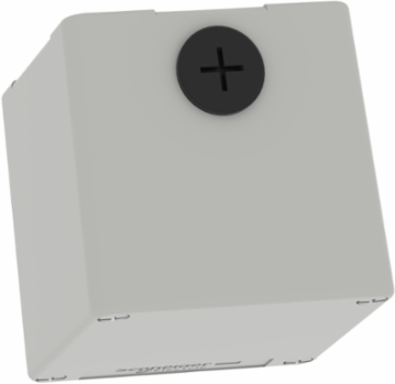

Schneider Electric XAPD14 Die cast empty control station, Harmony XAP, XB2 SL, zinc alloy, grey, M20, undrilled, 80x80x77mm, UL cULus
Schneider Electric XAPD14 Die cast empty control station, Harmony XAP, XB2 SL, zinc alloy, grey, M20, undrilled, 80x80x77mm, UL cULus
- MPN: XAPD14
- PPN: SCH-XAPD14
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$105.92/ EA
Description
This product is part of XAP range, an offer of metal control stations for XB4 and XB5 series of Ø 22mm pushbuttons. XAPD14 is an empty enclosure with grey color (RAL7035). This version without hole allows a customizable position of pushbuttons on the lid. It can also be used as a connection box. Its dimension leaves a comfortable space for wiring. It is possible to customize the XAP with the Harmony online product selector and configurator. This product has been standardized with metric thread to be used with ISO cable glands to be fully compliant with the IEC 62444. It comes with two M20 holes. The electric shock protection is at class I conforming to EN/IEC 61140 and the mechanical shock protection level is up to IK07 conforming to EN/IEC 62262. This is a zinc alloy offer and the dimensions are 80mm (width) x 80mm (height) x 77mm (depth) and it weighs 0.610kg. XAPD is designed for Original Equipment Manufacturers (OEMs) that meets heavy duty application requirements such as material handling, food & beverage, wind turbines, Mining, Minerals and Metals (MMM), vehicles, etc. This enclosure complies with EN/IEC 60529 and EN/IEC 60947-5-1 and comes with CE, UL, cULus and EAC certification. Fully customized legend panel are available to improve interface experience and enclosure's aesthetic. XAP is designed to be mounted in both vertical and horizontal position with 4 fixing holes. The form factor allows a combination between simplicity, customization flexibility and attractive design for machines. It is eco-friendly and complies with directives such as RoHS, WEEE and REACh relating to environmental protection.
Specifications
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2111017EN
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach Free Of SvhcYes
Circularity ProfileN/A
Specifications
- Product Destination
- for Ø 22 mm control and signalling units
- Colour Of Base Of Enclosure
- grey RAL 7035)
- Product Front Plate Size
- 80 x 80 mm
- Ip Degree Of Protection
- IP65 EN/IEC 60529 and EN/IEC 60947-5-1 || IP66 EN/IEC 60529 and EN/IEC 60947-5-1 || IP69 EN/IEC 60529 and EN/IEC 60947-5-1
- Number Of Cut-Out
- without cut-out

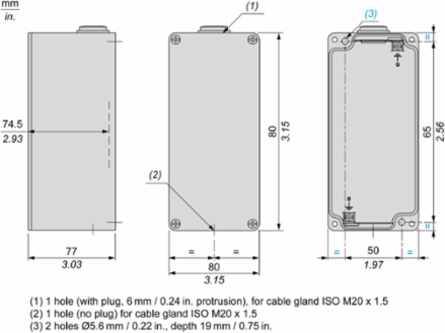

- Usable Depth
- 74.5 mm
Range Of ProductHarmony XAP
Product Or Component Typedie-cast empty control station
Materialdie cast zinc
Colour Of Covergrey RAL 7035)
Sale Per Indivisible Quantity1
Device Short NameXAPD
Environment
- Product Certifications
- UL || cULus || EAC
- Ik Degree Of Protection
- IK07 IEC 62262
- Ambient Air Temperature For Storage
- -40-70 °C
- Resistance To Chemical Agents
- special treatment can be obtained on request
Degree Of ProtectionUL type 4 UL 50 E || UL type 4X UL 50 E
Ambient Air Temperature For Operation-25-70 °C
Electrical Shock Protection Classclass I IEC 61140
Protective TreatmentTC
Complementary
- Number Of Horizontal Rows
- 0
- Cable Entry
- 2 x cable gland ISO
- Cad Overall Height
- 80 mm
- Thread Type
- M20 x 1.5
- Cad Overall Depth
- 77 mm
Number Of Vertical Rows0
Net Weight0.605 kg
Control Station Typemetal
Cad Overall Width80 mm
