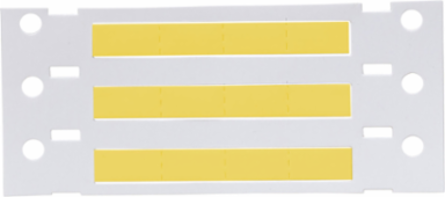

Brady DR-125-2-YL-4 Diesel Resistant PermaSleeve Heat Shrink Wire and Cable Sleeves, 0.125" Dia x 0.5" W
- MPN: DR-125-2-YL-4
- UPC: 662820528463
- PPN: BRD-DR-125-2-YL-4
- UNSPSC: 55121612
CAD
$2739.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The B-7646 PermaSleeve material is diesel resistant and is engineered for thermal transfer printing.
Documentation & Downloads
Specifications
Key Specifications
| Applications | Electrical Labeling; Wire and Cable Labeling |
|---|---|
| Color | Yellow |
| Finish | Matte |
| Label/Media Format | Roll |
| Primary Noun, Basic Function | Sleeve |
| Printable Sides | Double-Side Printable |
| Printer Compatibility | BBP72 |
| Quantity per Roll | 10000 |
| Recommended Ribbon | R6600 |
| Shrink Ratio | 3:1 |
| Suggested Ribbon Series | R6600 |
| Total Quantity | 10000 |
| Adhesive (Y/N) | No |
| Continuous & Die-Cut Materials Supported | Die Cut Sleeves |
| Material | Diesel-resistant Heat-shrink Polyolefin Sleeve |
| Resistance Properties | Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant |
| Core Diameter (mm/cm/m) | 76.20 mm |
| Diameter as Supplied (mm/cm/m) | 3.2 mm |
| Dimensions (Metric) | 12.70 mm W x 5.99 mm H |
| Height (in/ft/yd) | 0.235 in |
| Maximum Service Temperature °C | 135 °C |
| Maximum Wire Diameter (in/ft/yd) | 0.11 in |
| Maximum Wire Gauge | 20 AWG |
| Minimum Service Temperature °F | -67 °F |
| Minimum Wire Diameter (mm/cm/m) | 1.20 mm |
| Recovered Diameter (in/ft/yd) | 0.046 in |
| Roll Width (in/ft/yd) | 2 in |
| Size - Width (mm) | 12.70 mm |
| Sleeve Size (mm/cm/m) | 3.2 mm Dia x 12.7 mm W |
| Sleeve Width (mm/cm/m) | 12.7 mm |
| Thickness (mm/cm/m) | 0.521 mm |
| Vertical Repeat (mm) | 15.88 mm |
| Wire Gauge Range | 16 AWG to 20 AWG |
| Brand Name | Brady® |
|---|---|
| Enables Industry Compliance | ASTM D 2671; CSA Approved; IEC 243; IEC 60684-2; ISO/R 1183; MIL-STD-202; NF Approved; SAE-AS-81531 |
| For Use with Printer | BBP®72 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer |
| Markers per Roll | 2500 |
| Print Technology | Thermal Transfer |
| Printer and Label Applications | Wire & Cable |
| Printer Compatibility (Print) | BBP72 |
| Quantity per Row | 4 |
| Ribbon Series | R6600 |
| Sleeve Slits | Yes |
| Total Qty per Pack | 10000 Label(s) / Roll |
| Trade Name | PermaSleeve® |
| Brady Material Number | B-7646 |
| Label Properties | Heat Shrink Sleeves |
| Material Properties | Heat-shrinkable |
| SAP B-Number | B-7646 |
| Diameter as Supplied (in/ft/yd) | 0.125 in |
| Dimensions | 0.235 in H |
| Dimensions 2 | 0.235 in H |
| Height (mm/cm/m) | 5.99 mm |
| Maximum Service Temperature °F | 275 °F |
| Maximum Wire Diameter (mm/cm/m) | 3.20 mm |
| Minimum Service Temperature °C | -55 °C |
| Minimum Wire Diameter (in/ft/yd) | 0.046 in |
| Minimum Wire Gauge | 16 AWG |
| Recovered Diameter (mm/cm/m) | 1.2 mm |
| Roll Width (mm/cm/m) | 50.8 mm |
| Sleeve Size (in/ft/yd) | 0.125 in Dia x 0.5 in W |
| Sleeve Width (in/ft/yd) | 0.5 in |
| Thickness (in/ft/yd) | 0.0205 in |
| Vertical Repeat | 0.625 in |
| Wire Diameter Range | 0.046 in to 0.11 in |
Regulatory Information
| CA Prop 65 Labeled | Yes |
|---|---|
| Contains CA PROP 65 Substance | Yes Contains-Label required |
| Contains CA PROP 65 Warning Type | Cancer |
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | Yes |
| CA Prop 65 Label Warning | WARNING: Cancer - www.P65warnings.ca.gov |
|---|---|
| Contains CA PROP 65 Substance | Yes |
| Contains CA Prop 65 Cancer Causing Chemical | Antimony Trioxide |
| EU RoHS Compliance | Pass 2011/65/EU |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
