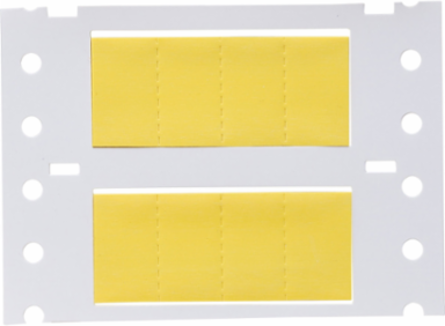

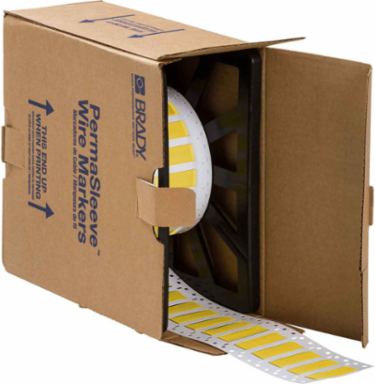

Brady DR-500-2-YL-4 Diesel Resistant PermaSleeve Heat Shrink Wire and Cable Sleeves, 0.5" Dia x 0.5" W
- MPN: DR-500-2-YL-4
- UPC: 662820528432
- PPN: BRD-DR-500-2-YL-4
- UNSPSC: 55121612
CAD
$1501.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The B-7646 PermaSleeve material is diesel resistant and is engineered for thermal transfer printing.
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Electrical Labeling; Wire and Cable Labeling
- Color
- Yellow
- Finish
- Matte
- Label/Media Format
- Roll
- Primary Noun, Basic Function
- Sleeve
- Printable Sides
- Double-Side Printable
- Printer Compatibility
- BBP72
- Quantity per Roll
- 2000
- Recommended Ribbon
- R6600
- Shrink Ratio
- 3:1
- Suggested Ribbon Series
- R6600
- Total Quantity
- 2000
- Adhesive (Y/N)
- No
- Continuous & Die-Cut Materials Supported
- Die Cut Sleeves
- Material
- Diesel-resistant Heat-shrink Polyolefin Sleeve
- Resistance Properties
- Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
- Core Diameter (mm/cm/m)
- 76.20 mm
- Diameter as Supplied (mm/cm/m)
- 12.7 mm
- Dimensions (Metric)
- 12.70 mm W x 21.62 mm H
- Height (in/ft/yd)
- 0.851 in
- Maximum Service Temperature °C
- 135 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.45 in
- Maximum Wire Gauge
- 6 AWG
- Minimum Service Temperature °F
- -67 °F
- Minimum Wire Diameter (mm/cm/m)
- 4.75 mm
- Recovered Diameter (in/ft/yd)
- 0.187 in
- Roll Width (in/ft/yd)
- 2 in
- Size - Width (mm)
- 12.70 mm
- Sleeve Size (mm/cm/m)
- 12.7 mm Dia x 12.7 mm W
- Sleeve Width (mm/cm/m)
- 12.7 mm
- Thickness (mm/cm/m)
- 0.521 mm
- Vertical Repeat (mm)
- 41.28 mm
- Wire Gauge Range
- 1 AWG to 6 AWG
Brand NameBrady®
Enables Industry ComplianceASTM D 2671; CSA Approved; IEC 243; IEC 60684-2; ISO/R 1183; MIL-STD-202; NF Approved; SAE-AS-81531
For Use with PrinterBBP®72 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Markers per Roll500
Print TechnologyThermal Transfer
Printer and Label ApplicationsWire & Cable
Printer Compatibility (Print)BBP72
Quantity per Row4
Ribbon SeriesR6600
Sleeve SlitsYes
Total Qty per Pack2000 Label(s) / Roll
Trade NamePermaSleeve®
Brady Material NumberB-7646
Label PropertiesHeat Shrink Sleeves
Material PropertiesHeat-shrinkable
SAP B-NumberB-7646
Diameter as Supplied (in/ft/yd)0.5 in
Dimensions0.851 in H
Dimensions 20.851 in H
Height (mm/cm/m)21.62 mm
Maximum Service Temperature °F275 °F
Maximum Wire Diameter (mm/cm/m)12.70 mm
Minimum Service Temperature °C-55 °C
Minimum Wire Diameter (in/ft/yd)0.187 in
Minimum Wire Gauge1 AWG
Recovered Diameter (mm/cm/m)4.7 mm
Roll Width (mm/cm/m)50.8 mm
Sleeve Size (in/ft/yd)0.5 in Dia x 0.5 in W
Sleeve Width (in/ft/yd)0.5 in
Thickness (in/ft/yd)0.0205 in
Vertical Repeat1.25 in
Wire Diameter Range0.187 in to 0.45 in
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
