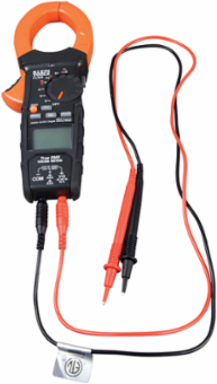

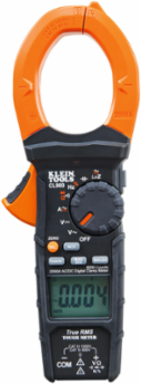

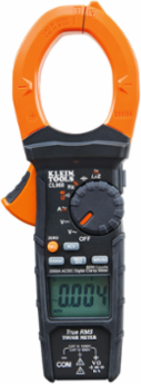

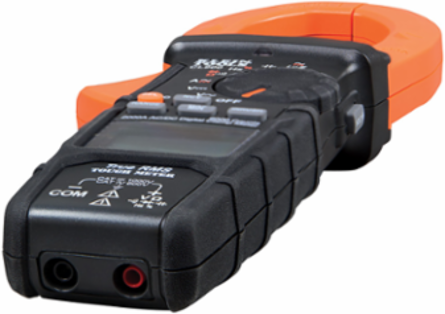

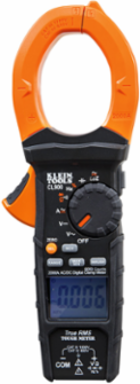

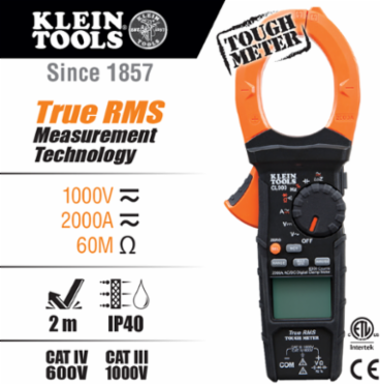

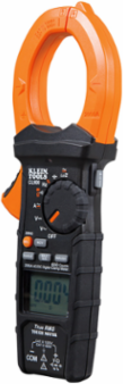

Klein Tools CL900 Digital Clamp Meter 2000A AC/DC, Low Impedance, IP40, 6.6-Foot Drop Protection
- MPN: CL900
- UPC: 092644692352
- PPN: KLT-CL900
- UNSPSC: 41113654
CAD
$267.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The CL900 Electrical Tester is an auto-ranging, true root mean square (TRMS) digital clamp meter. It measures AC/DC current via the clamp and measures AC/DC voltage, resistance, continuity, frequency, duty-cycle, capacitance, and tests diodes via test-leads. It features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages, and has a dedicated mode for capturing Inrush Current.
Features
- Digital Clamp Meter measures 2000A AC/DC, 1000V AC/DC, 60 Milliohm
- Rugged Klein TOUGH METER industrial design stands up to jobsite demands; built to withstand a 6.6-Foot (2m) drop
- Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
- CAT IV 600V, CAT III 1000V, Class 2, double insulation safety rating
- Backlit display for clear visibility in environments with low ambient lighting
- Dedicated mode for capturing Inrush Current
- Non-contact voltage tester integrated into the clamp
- Low impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
- Audible continuity, capacitance, diode test, frequency and duty cycle, min/max feature, data hold capability
- Test leads measure AC/DC voltage, resistance, continuity, frequency, duty-cycle, capacitance and diodes
- Clamp measures AC and DC current
- Powers off automatically after 30 minutes of non-use to conserve battery life
- Low battery indicator and easily accessible battery compartment
- Includes carrying case (instruction manual), straight input test leads, and 2 x AAA batteries
- Can be used with Magnetic Hanger Cat. No. 69417 (sold separately)
- Low Impedance (LoZ) Mode; Dedicated Mode for Capturing Inrush Current; Integrated Non-Contact Voltage Tester
Documentation & Downloads
Specifications
Key Specifications
- Application
- Measures Current to 2000A AC/DC
- Voltage
- 1000V AC/DC
- Drop Protection
- 6.6' (2 m)
- DC Voltage
- 1000
- Capacitance
- 6000µF
- DC Polarity Indicator
- Yes
- Auto-Power Off
- Yes
- AC Voltage
- 1000
- Display
- 6000 Count LCD
- Material
- Plastic/Electronics
- Overall Height
- 4.3 cm (1.7 Inch)
- Overall Length
- 26.4 cm (10.39 Inch)
- Height
- 1.7100 in
- Depth
- 10.4300 in
FunctionsAudible Continuity, Capacitance, Diode Test, Frequency & Duty Cycle, Min/Max feature, Data Hold capability, Inrush Current, Low Impedance
Frequency500kHz
IncludedCarrying Case, Instruction Manual, Straight Input Test Leads, Batteries
DC Micro-AmpNo
Ingress ProtectionIP40
Current2000A AC/DC
StandardCAT IV 600V, CAT III 1000V
TypeClamp Meter
Ohms60MΩ Resistance
Batteries2 x AAA
Overall Width3.9 Inch (9.9 cm)
Jaw Size5.1 cm (2 Inch)
Width3.9000 in
Weight1.1000 lbs
