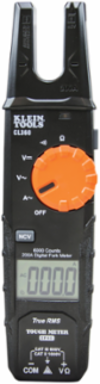

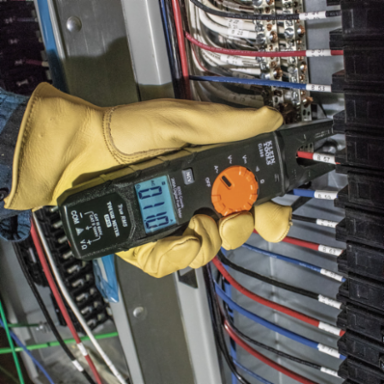

Klein Tools CL360 Open Jaw Fork Meter, 200A AC Current, 600V AC/DC Voltage, Low Battery Indicator
Klein Tools CL360 Open Jaw Fork Meter, 200A AC Current, 600V AC/DC Voltage, Low Battery Indicator
- MPN: CL360
- UPC: 092644691140
- PPN: KLT-CL360
- UNSPSC: 41113654
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$139.43/ EA
Description

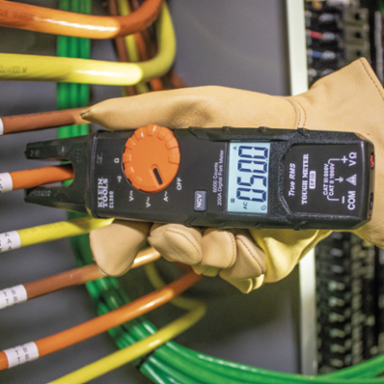

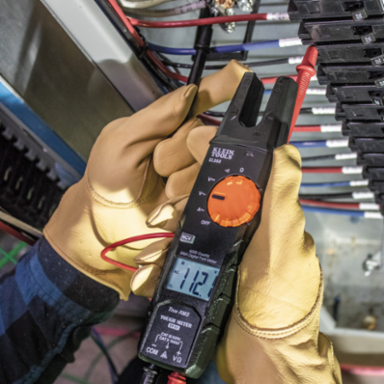

The CL360 Electrical Tester is an automatically ranging true root mean squared (TRMS) digital open jaw fork meter that measures AC current via the fork, AC/DC voltage, continuity, and resistance via test leads. It can detect the presence of voltage via the integrated non-contact voltage (NCV) tester. It includes a carrying case, test leads and 2 x AAA batteries.
Features
- Open Fork Meter with automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
- Tester measures AC current via the clamp, and AC/DC voltage, resistance, and continuity via test leads

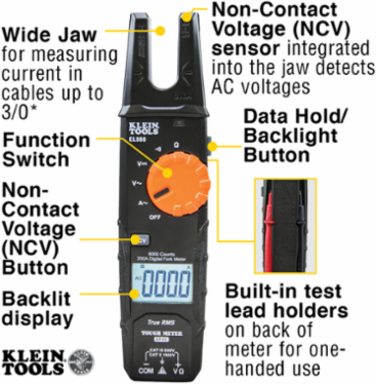

- Wide jaw for measuring current in cables up to 3/0 sizes; accommodates cables of diameter up to 0.58-Inch (1.5 cm)
- Non-contact voltage tester integrated into the jaw
- Includes a carrying case, test leads and 2 x AAA batteries
- Jaw and Housing: CATIV 600V/CATIII 1000V; Electrical: CATIII 600V/CATII 1000V; Class 2, Double Insulation
- Backlit display for clear readings
- Powers off automatically after 15 minutes of non-use to conserve battery life
- Rugged Klein "TOUGH METER" is built to withstand a 9.9-Foot (3m) drop
- Low battery indicator and easily accessible battery compartment
- Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
- Low Battery Indicator, Built-in Test Lead Holders, Backlit Display
- Wide jaw for measuring current in cables up to 3/0 sizes; accommodates cables of diameter up to 0.58-Inch (14.7mm)
- Rugged Klein TOUGH METER is built to withstand a 9.9-Foot (3m) drop
Specifications
Specifications
- Country of Origin
- China
- Type
- Open Jaw Fork Current Meter
- Current
- 200A AC
- Batteries
- 2 x AAA
- Overall Length
- 8.39" (21.3 cm)
- Display
- 6000 Count LCD
- DC Polarity Indicator
- Yes
- Ingress Protection
- IP40
- DC Voltage
- 1000V
- Overall Height
- 1.38" (3.5 cm)
- Drop Protection
- 9.9' (3m)
- Ohms (Resistance)
- 60MΩ
- Width
- 2.1200 in
- Weight
- 0.4000 lbs
Style NameOpen Fork Meter

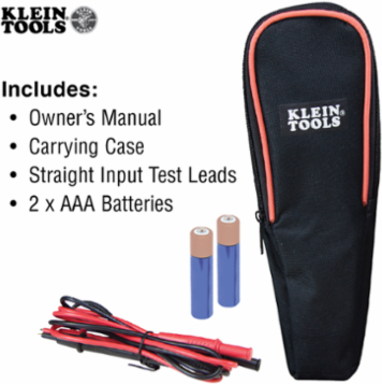

IncludedElectrical Tester; Carrying Case; Instruction Manual; Straight Input Test Leads; and 2 x 1.5V AAA Batteries
MaterialPlastic/Electronics
Voltage600V AC, 1000V DC
FunctionsAC Current, AC/DC Voltage, Continuity, Resistance
StandardJaw and Housing: CATIV 600V/CATIII 1000V; Electrical: CATIII 600V/CATII 1000V
Jaw Size0.58" (1.5 cm) Opening
AC Voltage600V
Auto-Power OffYes
Overall Width2.12" (5.4 cm)
ApplicationMeasures AC Current, AC/DC Voltage, Continuity, Resistance
Height1.3800 in
Depth8.3900 in
