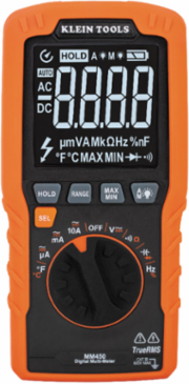

Klein Tools MM450 Slim Digital Multimeter TRMS 600V, 10A, -40 to 1832 F, 50 M
- MPN: MM450
- UPC: 092644693755
- PPN: KLT-MM450
- UNSPSC: 41113630
CAD
$110.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

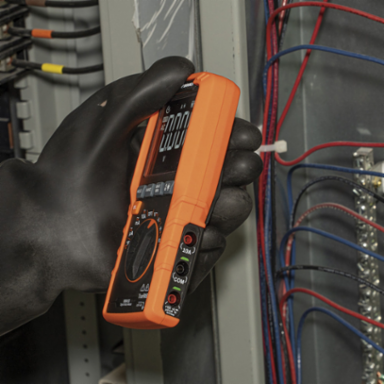

Klein Tools MM450 Multimeter is a TRMS auto-ranging slim multimeter that measures AC/DC voltage, AC/DC current, and resistance. It can also measure temperature, capacitance, frequency, duty-cycle, and test diodes and continuity. It features a high visibility, reverse contrast display with an optical sensor to automatically optimize viewing in dark or bright ambient light. The slim profile of the MM450 makes this meter almost the size of a cell phone and it conveniently fits into most pockets. The MM450 features the same quality leads you have come to expect from the Digital Multimeter line at Klein Tools. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving features.
Features

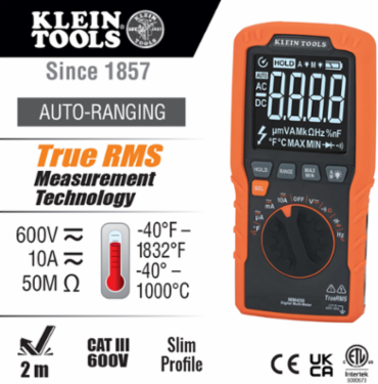

- Multimeter with automatic ranging true root mean square (TRMS) technology for increased accuracy
- Measures up to 600V AC/DC voltage, 10A AC/DC current and 50 MΩ resistance, continuity, temperature, capacitance, frequency, duty-cycle, and test diodes

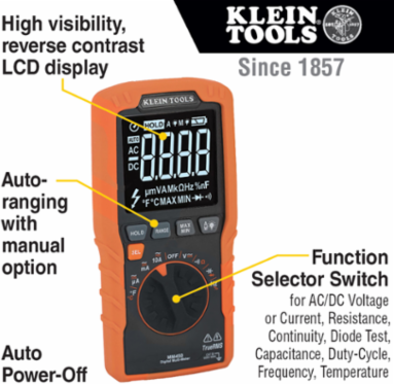

- High visibility, reverse contrast display with automatic backlight adjustment
- Lead-Alert protection with LEDs for test lead placement

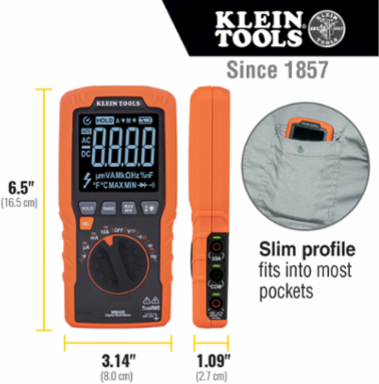

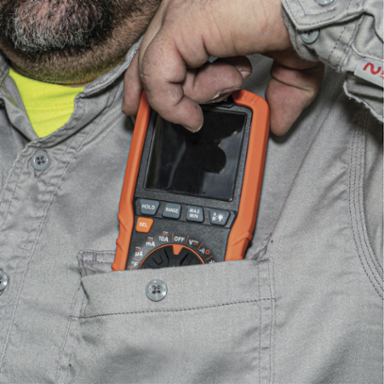

- Slim profile allows multimeter to conveniently fit into most pockets
- Low battery indicator and easily accessible battery and fuse compartment
- Durable meter built to withstand a 6.6-Foot (2 m) drop
- Includes carrying pouch, safety rated CAT III 1000V/CAT IV 600V test leads, thermocouple with adapter and 2 x AAA batteries
- CAT III 600V safety rating
- For use in basic and controlled electromagnetic environments such as residential, business and light-industrial locations
- Slim Profile; Lead-Alert; High-Visibility Display with Optical Sensor; Auto-Range; Min/Max Measurements; Auto Power-Off; Data-Hold
Documentation & Downloads
Specifications
Key Specifications
| Ohms | 50 MΩ Resistance (50 MΩ Resistance) |
|---|---|
| Overall Length | 6.5 Inch (16.5 cm) (6.5 Inch) (16.5 cm) |
| Batteries | 2 x AAA |
| Type | Digital Multimeter |
| Drop Protection | 6.6' (2 m) |
| Display | 4000 Count LCD |
| Included | Multimeter, Carrying Case, Test Leads with CAT III/CAT IV Safety Caps, Thermocouple, Instructions, 2 x AAA Batteries |
| Color | Orange/Black |
| Temperature Range | -40° to 1832°F (-40° to 1000°C) |
| Material | ABS, Electrical Components |
| Height | 1.0900 in |
| Depth | 6.5000 in |
| Overall Width | 3.14 Inch (8 cm) (3.14 Inch) (8 cm) |
|---|---|
| Overall Height | 2.8 cm (1.09 Inch) (2.8 cm) (1.09 Inch) |
| Frequency | 1 Hz to 50 KHz |
| Application | Testing and Measuring Voltage |
| Current | 10A AC/DC |
| Capacitance | 400 µF |
| Functions | Measures up to 600V AC/DC Voltage, 10A AC/DC Current and 50MΩ Resistance, Temperature, Capacitance, Frequency, Duty-Cycle, Test Diodes and Continuity |
| Voltage | 600V AC/DC |
| Standard | CAT III 600V; CE and UKCA Certified |
| Accuracy | See Instructions |
| Width | 3.1500 in |
| Weight | 0.5750 lbs |
