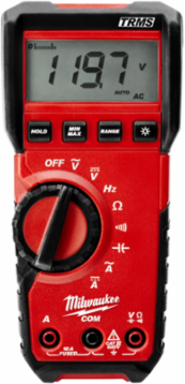

Milwaukee Tool 2216-20 Digital Multimeter, True RMS, 10 A AC/DC Current, 600 V AC/DC Voltage
Milwaukee Tool 2216-20 Digital Multimeter, True RMS, 10 A AC/DC Current, 600 V AC/DC Voltage
- MPN: 2216-20
- UPC: 045242236923
- PPN: MIL-2216-20
- UNSPSC: 41113630
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$210.27/ EA
Description
Heavy duty True-Rms meter for professional residential, commercial and industrial applications. The perfect tool for the professional commercial or industrial electrician; includes the features that are needed to get the job done in the field, on-site or in the plant. Milwaukee 2216-20 digital multimeter features: true RMS measurement to accurately measure all applications; CATIII 600 V for increased safety in demanding electrical environments; AC voltage range of 6 millivolts to 600 V; DC voltage range of 600 millivolts to 600 V DC; resistance measurement from 600 ohms to 40 m Ohm; frequency measurement from 10 Hz to 50 kilohertz; detects continuity at less than 30 ohms; current measurement to 10 A AC/DC; hold function, min/max function and digital bar graph readout; black on white display and backlight for easier reading; rugged over-molding for improved durability and user grip; proprietary rail system for mounting accessories.
Features
- True-RMS for accurate measurement in all applications
- Wide voltage range to 600 AC /DC volts
- Resistance range from 600 Ohm to 40 mOhm
- Auto range to mV
- Frequency measurements from 10 Hz to 50 kHz
- Measures current to 10 A AC/DC
- Rugged over-molding increases durability and user grip
- Cat III 600 V for increased safety
- Capacitance to 1000 μF
Specifications
Specifications
- Country of Origin
- Taiwan
- Case Included
- No
- Case Material
- none
- Depth
- 10.5 Inches
- Width
- 2.28 Inches
- Digital / Analog
- Digital
- AC Capable
- Yes
- AC Voltage Range & Resolution
- 6mV to 600V
- Capacitance Range & Resolution
- 0.1-1000 μF
- Current Clamp
- No
- DC Capable
- Yes
- DC Voltage Range & Resolution
- 6mV to 600V
- Duty Cycle Capable
- No
- Frequency Range
- 50 kHz
- Multiple On-Screen Displays
- No
- Resistance Capable
- Yes
- Operating Temperature Range
- not available
- Test Lead Probe Ends
- electrical
Battery Type(2) AA Batteries
Case Colornone
Color / FinishRed with black Overmold
Length6.16 Inches
Weight (oz)20.8
Materialpolycarbonate with rubber Overmold
AC Current Range & Resolution0.001-10.00A
Capacitance CapableYes
Continuity BeeperYes
Data HoldYes
DC Current Range & Resolution0.001-10.00A
Detachable Display ScreenNo
Frequency CapableYes
Min/Max/Avg FeatureYes
PC LogNo
Resistance Range & Resolution600 Ohm to 40 mOhm
Temperature CapableNo
Package Contents(1) Digital Multimeter with Test Leads; (2) AA Batteries
