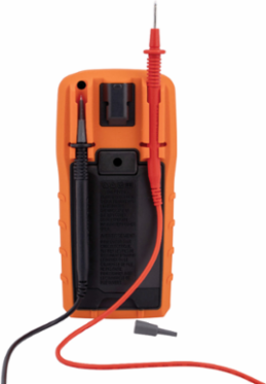

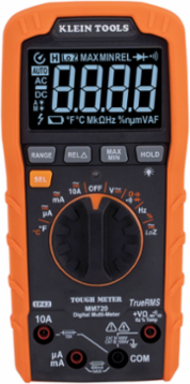

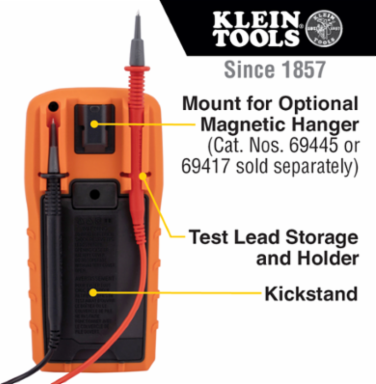

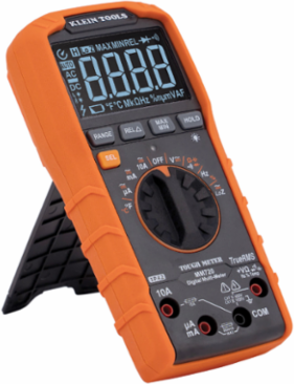

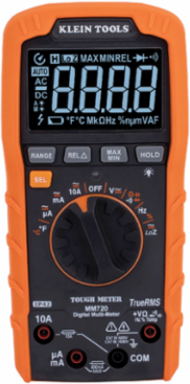

Klein Tools MM720 Digital Multimeter TRMS 1000V, 10A AC/DC, IP42, 6000 Count LCD
- MPN: MM720
- UPC: 092644693762
- PPN: KLT-MM720
- UNSPSC: 41113630
CAD
$144.60
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

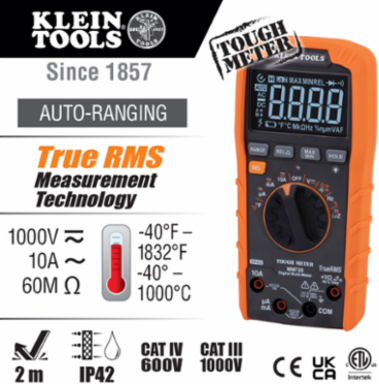

Klein Tools MM720 Multimeter is an automatically ranging true root mean squared (TRMS) digital multimeter that measures AC/DC voltage, AC/DC current, and resistance. It can also measure temperature, capacitance, frequency, duty-cycle, diodes and continuity. It features a high visibility, reverse contrast LCD display with an optical sensor to automatically optimize viewability in dark or bright ambient lighting.
Features
- Multimeter with automatic ranging true root mean square (TRMS) technology for increased accuracy
- Tester measures up to 1000V AC/DC voltage, 10A AC/DC current and 60 MOhms resistance plus temperature, capacitance, frequency, low impedance (LoZ), duty-cycle, test diodes and continuity

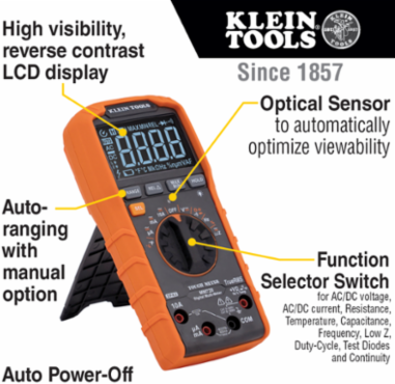

- High visibility, reverse contrast display with optical sensor to automatically optimize viewability in dark or bright ambient lighting
- Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages

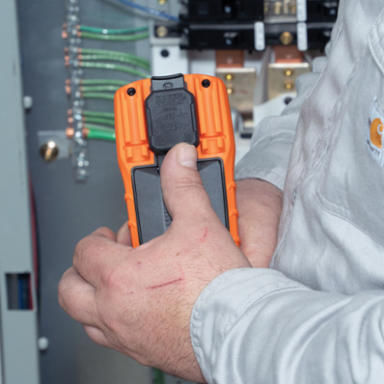

- Low battery indicator and easily accessible battery and fuse compartment
- Tough meter built to withstand a 6.6-Foot (2 m) drop and is rated IP42
- Includes carrying pouch, test leads, thermocouple with adapter, and batteries
- CAT IV 600V Safety Rating
- For use in basic and controlled electromagnetic environments such as residential, business and light-industrial locations
- High-Visibility Display with Optical Sensor; Auto-Range; Min/Max/Relative; Low Impedance (LoZ) Mode; Auto Power-Off; Data Hold
Documentation & Downloads
Specifications
Key Specifications
- Type
- Digital Multimeter
- Current
- 10A AC/DC
- Drop Protection
- 6.6' (2 m)
- Batteries
- 2 x AAA
- Frequency
- 1 Hz - 500 KHz
- Temperature Range
- -40° to 1832°F (-40° to 1000°C)
- Display
- 6000 Count LCD
- Ingress Protection
- IP42
- Standard
- CAT IV 600V; CAT III 1000V
- Overall Length
- 6.94 Inch (17.6 cm)
- Height
- 3.7300 in
- Depth
- 10.6300 in
IncludedMultimeter, Carrying Case, Test Leads with CAT III/CAT IV Safety Caps, Thermocouple, Instructions, 2 x AAA Batteries
FunctionsMeasures up to 1000 VAC/DC Voltage, 10A AC/DC Current, 60MΩ Resistance, Temperature, Capacitance, Frequency, Duty-Cycle, Diodes, and Continuity
MaterialABS, Electrical Components
ColorOrange/Black
ApplicationTesting and Measuring Voltage
Voltage1000V AC/DC
Ohms60MΩ Resistance
Capacitance6000 µF
Overall Width3.37 Inch (8.6 cm)
Overall Height4.8 cm (1.88 Inch)
Width5.8700 in
Weight1.3900 lbs
