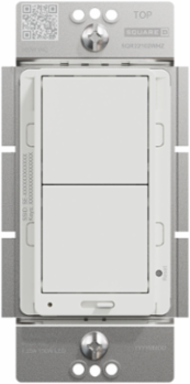

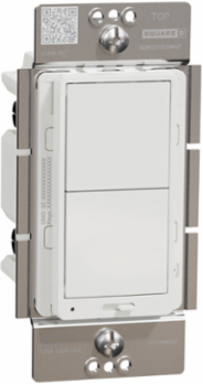

Schneider Electric SQR22102WHZ Connected Dimmer, 600 W, 1 Gang, Wireless Zigbee, White

Connected Dimmer, 600 W, 1 Gang, Wireless Zigbee, White
Connected Dimmer, 600 W, 1 Gang, Wireless Zigbee, White
Connected Dimmer, 600 W, 1 Gang, Wireless Zigbee, White
  • MPN: SQR22102WHZ
  • UPC: 785901907442
  • PPN: SCH-SQR22102WHZ

Spec sheet

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • In Stock

    Company Stock:

    00

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$85.20/ EA

    Description

    The Schneider Electric SQR22102WHZ Connected Dimmer is designed to enhance your smart home experience, offering efficient control over your lighting with its wireless Zigbee technology. Capable of handling up to 600 watts, this one-gang dimmer allows for seamless integration into existing setups, enabling the adjustment of brightness levels to suit your mood or activity. With its sleek white finish, it not only provides functionality but also complements modern aesthetics, making it an essential addition for those looking to improve both the convenience and ambiance of their living spaces.

    Specifications

    Load Type Power Range
    Halogen 0-600 W, Incandescent 0-600 W, Dimmable LED 0-150 W
    Rated Operational Current AC
    5 A
    Number of Ways
    3
    Number of Gangs
    1 gang
    Mounting Mode
    By screws
    Surface Finish
    Matte
    Communication Network Type
    Wireless Zigbee 2.4 GHz, 2.5 mW, < 50 m
    Mobile App Name
    Wiser Home
    Range
    Square D X Series
    Device Presentation
    Mechanism with fixing frame
    Connections - Terminals

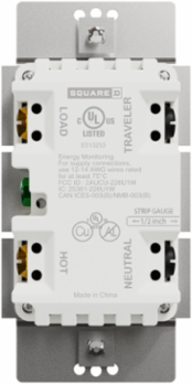

    Phase and neutral 4 screw terminal copper, Earth 1 screw terminal copper
    Reach Free Of Svhc
    Yes
    RoHS Exemption Information
    Yes
    Toxic Heavy Metal Free
    Yes
    China RoHS Regulation
    Pro-active China RoHS declaration
    Colour Tint
    White
    Power Capacity600 W
    Rated Operational Voltage120 V
    Number of Poles1
    Device MountingFlush
    MaterialPlastic (strap), Metal (fixing frame)
    ActuatorRocker
    Concentrator CompatibilityWiser hub generation 1
    ComplianceREACH, EU RoHS, China RoHS, Toxic heavy metal free, Mercury free
    Aesthetic NameX Series
    Product Or Component TypeConnected dimmer
    Network TypeAC
    Reach RegulationFree of substances of very high concern above threshold
    EU RoHS DirectiveCompliant
    Mercury FreeYes
    Device ApplicationControl
    Country of OriginChina
