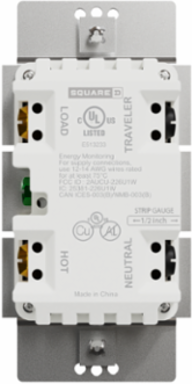

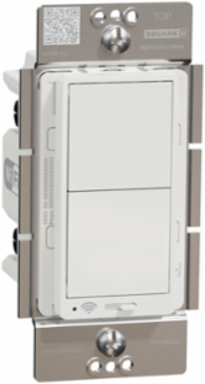

Square D SQR226U1WHW X Series 15A 600W WiFi Energy Monitoring Dimmer - 1 Pole, 3 Way, Flush Mount
- MPN: SQR226U1WHW
- UPC: 785901693048
- PPN: SCH-SQR226U1WHW
CAD
$57.76
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
X Series residential wiring devices rocker dual-load dimmer offers an array of new features, such as flush mounting, easy installation, and connectivity with the wifi. The rated operational voltage of this dimmer is 120V. The mechanism with fixing frame belongs to X Series aesthetic group. The connection are screw terminal. Its matching mounting box can be recessed into the surface of the wall for flush mounting. The dimmer is made of metal and plastic making it resistant and durable. This dimmer has a white frame. It features protective painted surface treatment. This dimmer benefits from an elegant matt finishing, constituting an added value for your interior design. This dimmer has a width of 51 mm, a height of 104 mm and a depth of 47 mm. By offering a solution compatible with several types of installations, this dimmer is UL and cUlus certified.
Documentation & Downloads
Specifications
Key Specifications
- Mobile App Name
- Wiser Home
- Aesthetic Name
- X Series
- Product Or Component Type
- connected dimmer
- Device Presentation
- mechanism with fixing frame
Actuatorrocker
Colour Tintwhite
RangeSquare D X Series
Device Applicationcontrol
Complementary
- Communication Network Type
- Wi-Fi
- Device Mounting
- flush
- Network Type
- AC
- Connections - Terminals
- phase and neutral 4 screw terminal copper || earth 1 screw terminal copper
- [Ie] Rated Operational Current Ac
- 15 A
- Material
- plastic: strap || metal: fixing frame
- Communication Network Type
- Wi-Fi 2.4-2.4 GHz), 10 mW < 50 m
- Depth
- 47 mm
- [Ue] Rated Operational Voltage
- 120 V
Height104 mm
Number Of Gangs1 gang
Surface Finishmatt
Mounting Modeby screws
Number Of Ways3
Quantity Per Set1 piece
Width51 mm
Load Typehalogen 0...600 W || incandescent 0...600 W || dimmable LED 0...150 W
Number Of Poles1
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Contractual warranty
- Warranty
- 2 years
