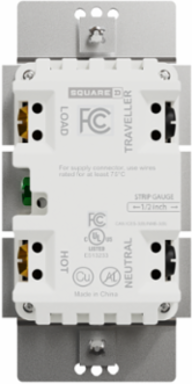

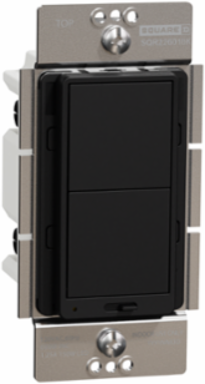

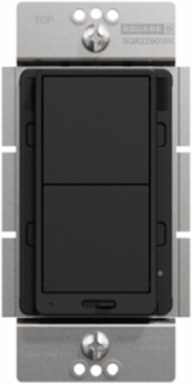

Square D SQR22601BK X Series Dimmer 15A 600W 1 Pole/3 Way Flush Mount Matte Black
- MPN: SQR22601BK
- UPC: 785901534860
- PPN: SCH-SQR22601BK
CAD
$42.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
X Series residential wiring devices rocker dual-load dimmer offers an array of new features, such as flush mounting, easy installation, and connectivity. The rated operational voltage of this dimmer is 120V. The mechanism with fixing frame belongs to X Series aesthetic group. The connection are screw terminal. Its matching mounting box can be recessed into the surface of the wall for flush mounting. The dimmer is made of metal and plastic making it resistant and durable. This dimmer has a black frame. It features protective painted surface treatment. This dimmer benefits from an elegant matt finishing, constituting an added value for your interior design. This dimmer has a width of 51 mm, a height of 104 mm and a depth of 47 mm. By offering a solution compatible with several types of installations, this dimmer is UL and cUlus certified.
Documentation & Downloads
Specifications
Key Specifications
- Actuator
- rocker
- Colour Tint
- black
- Range
- Square D X Series
- Device Application
- control
Aesthetic NameX Series
Product Or Component Typedimmer
Device Presentationmechanism with fixing frame
Complementary
- Network Frequency
- 60 Hz
- Device Mounting
- flush
- Network Type
- AC
- Surface Treatment
- painted
- Mounting Mode
- by screws
- Number Of Ways
- 3
- Quantity Per Set
- 1 piece
- Depth
- 47 mm
- [Ue] Rated Operational Voltage
- 120 V
Height104 mm
Number Of Gangs1 gang
Surface Finishmatt
Connections - Terminalsphase and neutral 4 screw terminal copper || earth 1 screw terminal copper
[Ie] Rated Operational Current Ac15 A
Materialplastic: strap || metal: fixing frame
Width51 mm
Load Typehalogen 0...600 W || incandescent 0...600 W || dimmable LED 0...150 W
Number Of Poles1
Environment
- Product Certifications
- cULus
StandardsUL 1472 || ICES-003 || NEMA SSL 7A
Contractual warranty
- Warranty
- 2 years
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
