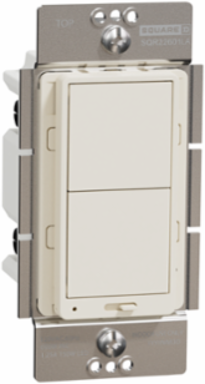

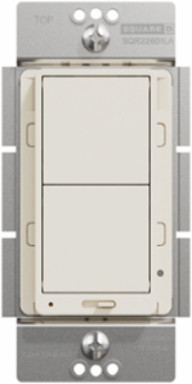

Schneider Electric SQR22601LA X Series 15A Dimmer Switch 600W 1 Pole 3 Way Light Almond
- MPN: SQR22601LA
- UPC: 785901534891
- PPN: SCH-SQR22601LA
- UNSPSC: 39122206
CAD
$44.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Square D X Series 15A 600W Single-Pole/3-way Rocker Dimmer refreshes a room with modern design. The rated operational voltage of this dimmer is 120V. The mechanism with fixing frame belongs to X Series aesthetic group. The connection are screw terminal. Enjoy the easy-to-use dimming to create the right lighting scene and to reduce your energy usage. It eliminates near-off flickering on LED lights. Complete the look with one of the Square D X Series cover plates (not provided) that easily snaps into place for a modern, flush-facing finish to your walls. It features protective painted surface treatment. This dimmer benefits from an elegant matt finishing, constituting an added value for your interior design. This dimmer has a width of 51 mm, a height of 104 mm and a depth of 47 mm. Its Ue rated operational voltage is 120VAC. Its Ie rated operational current is 15A. This device has load of 600W ideal for controlling incandescent and halogen bulbs. It has load of 150W for compact fluorescent and LED lamps. This device enables flush mounting. This device is light almond with matte surface finish, easy installations and easy-to-clean. This device is compliant with UL and cULus certification.
Features
- Effortlessly adjust lighting with wireless dimming
- Supports seamless communication among IoT devices
- Eliminates flickering on LED lights
- Control remotely via Wi-Fi with Wiser Home app
- Integratable with Alexa/Google/Apple
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Weight | 175 g |
| Actuator | rocker |
|---|---|
| Depth | 47 mm |
Complementary Attributes
| Ie Rated Operational Current Ac | 15 A |
|---|
| Ue Rated Operational Voltage | 120 V |
|---|
Important Information Attributes
| Persona Type Ids | EU, EUA, LC, SC |
|---|---|
| Load Type | halogen 0...600 W, incandescent 0...600 Wdimmable LED 0...150 W |
| Carbon Footprint Of The Distribution Phase A4 | 0.05040609445612102, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.11108799180797371, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 22 kg CO2 eq., 22.413 |
| Local Publishable Date | 2026-08-19 |
| Pre Comm Date | 2020-12-18 |
| Use Carbon Footprint | 22.413 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2011020EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Actuator | rocker |
| Device Application | control |
| Market Segment | residential |
| Mounting Mode | by screws |
| Network Type | AC |
| Number Of Poles | 1 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | 1 piece |
| Returnability | Yes |
| Surface Finish | Matte |
| Targeted Channel | distributor |
| Color Tint | light almond |

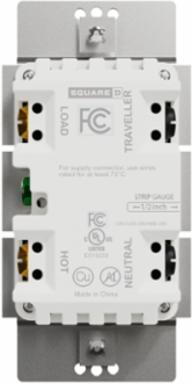

| Connections Terminals | phase and neutral 4 screw terminal copperearth 1 screw terminal copper |
| Data Source | extrapolated product |
| Width Nominal | 51 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 24 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Persona Type Names | End User, Consumer, Contractor, Electrician |
|---|---|
| X Main Color Tint | light almond |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.2 kg CO2 eq., 0.17330905027201557 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 9 kg CO2 eq., 8.545167195423318 |
| Local Data Status | Publishable |
| Pre Comm Announcement Date | 2020-10-30 |
| Return Indicator | Y |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Aesthetic Name | X Series |
| Energy Efficiency Optimized | False |
| Material | plastic: strapmetal: fixing frame |
| Network Frequency | 60 Hz |
| Number Of Gangs | 1 gang |
| Number Of Ways | 3 |
| Product Or Component Type | dimmer |
| Range | Square D X Series |
| Software Version | v5.9.4 |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 31 kg CO2 eq. |
| Main Color Tint | light almond |
| Database Version | 2022-01 |
| Height Nominal | 104 mm |
| Certificate Agency | cULus |
| Customs Code | 8533390040 |
| Functional Unit Description | The product can be used for single pole or 3-Way with Rocker Switch, the LED light can be adjusted manually and the switch can be controlled remotely. Air-Gap Switch feature meets UL requirement and disconnect power from load locally, refer to standard 802.11 b/g/n. Its functional units meet the following technical indicators:& 10- Voltage: 120VAC, 60HZ& 10- Dimmable LED: 1.25A (150W) |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 32 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2011020EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2011020_V2 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Reach Regulation | Free of Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 31.292970331959427 |
| Environmental Disclosure | ENVPEP2011020_V2 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Verification Date | 2026-05-26 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | dimmer |
|---|
ETIM
| ETIM 8 | EC000025 |
|---|---|
| ETIM 10 | EC000025 |
| ETIM 9 | EC000025 |
|---|
Contractual Warranty Attributes
| Warranty Period | 2 years |
|---|
| Warranty | 2 years |
|---|
Overview Attributes
| Device Presentation | mechanism with fixing frame |
|---|
