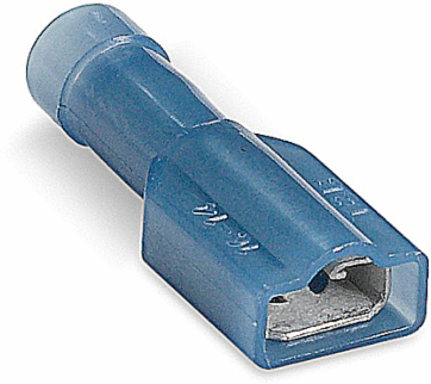

Spec-Kon KNF14-250FD-M Fully Insulated Nylon Disconnects, Blue, 16-14 AWG, Tab Size .250x.032
- MPN: KNF14-250FD-M
- UPC: 786210107875
- PPN: T-B-KNF14-250FD-M
CAD
$1.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Fully Insulated Nylon Female - 250 Series Disconnects for Wire Range 16-14 , Tab Size .250x.032, Blue
Features
- Fully Insulated. Metal Insulation Sleeve. Molded Insulator. Internal Barrel Serrations. Funnel Entry.
- Application Tools: WT112M, CM2000A
Specifications
European Specifications (ETIM)
| ETIM | EC000516 Round or flat plug/receptacle |
|---|---|
| Insulation | Fully Insulated |
| Material insulation | PA |
| Nominal cross section | 1.5-2.5mm² |
|---|---|
| Colour insulation | Blue |
| Material | Brass |
Packaging
| Inner Quantity | 1000 |
|---|---|
| Outer Quantity | 10000 |
| Weight Uom | 3.13 lbs. per 1000 |
| Inner Dimensions (inches) | 7x5x3.25 |
|---|---|
| Outer Dimensions (inches) | 11.1x8.3x18 |
North American Specifications (UNSPSC)
| UNSPSC | 39121447 Wire terminal disconnect |
|---|---|
| Brand Name | Spec-Kon |
| Special Features | Fully Insulated. Metal Insulation Sleeve. Molded Insulator. Internal Barrel Serrations. Funnel Entry. |
| Standard | UL E66716 |
| Color | Blue |
| IGCC | 4667 Wire terminal disconnect |
|---|---|
| Type | Disconnects |
| Application | For use in temporary connections to male disconnects and terminal blocks. |
| Material | Brass with Copper Sleeve |
| Insulation | Nylon |
