Sta-Kon RBD1833 Disconnects
- MPN: RBD1833
- UPC: 786210817316
- PPN: T-B-RBD1833
CAD
$1.15
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

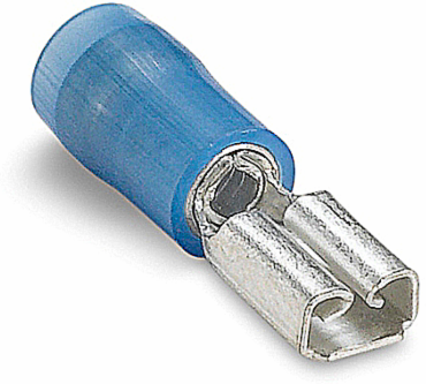

Nylon Insulated Female Disconnect, Length .83 Inches, Width .23 Inches, Maximum Insulation .163, Tab Size .187x.032, Wire Range #16-#14 AWG, Color Blue, Copper, Tin Plated, 1,000 Pack
Features
- Quick, reliable method of connection to terminal blocks and boards without the use of tools.
- Unique construction of the female disconnect offers long-term dependability.
- Application Tools: WT145C, WT2000, WT112M, ERG4001
- Alternate Package Qty: RBD14183
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121447 Wire terminal disconnect |
|---|---|
| Brand Name | Sta-Kon |
| Special Features | Quick, reliable method of connection to terminal blocks and boards without the use of tools. Unique construction of the female disconnect offers long-term dependability. |
| Material | Brass |
| Color | Blue |
| IGCC | 4667 Wire terminal disconnect |
|---|---|
| Type | Disconnects |
| Standard | UL E66716 |
| Finish | Electro -Tin Plated |
| Insulation | Nylon |
Packaging
| Inner Quantity | 1000 |
|---|---|
| Outer Quantity | 5000 |
| Weight Uom | 0.63 lbs. per 1000 |
| Inner Dimensions (inches) | 6x4.5x3 |
|---|---|
| Outer Dimensions (inches) | 10.5x8.75x7 |
European Specifications (ETIM)
| ETIM | EC000516 Round or flat plug/receptacle |
|---|---|
| Colour insulation | Blue |
| Material | Copper |
| Insulation | Partially Insulated |
|---|---|
| Material insulation | PA |
