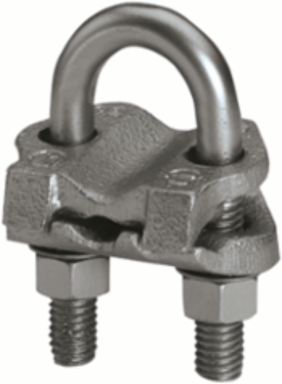

Burndy GAR114C Ground Clamp for Rebar/Cable, 1.88 Inch Width, 2-1/2 Inch Height, 4 AWG Copper

MPN: GAR114C
UPC: 781810231005
PPN: BUR-260100

$163.60

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Ground Clamp-Cable to Rebar, 8 Sol. - 4 Str., Bright Dipped.

Documentation & Downloads

Specifications

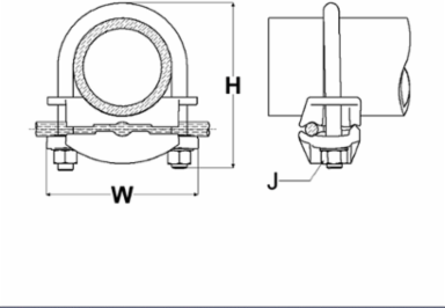

Dimensions

Dimension - B Length inch	1.50 in
Dimension - Height inch	2.50 in
Dimension - Length Overall inch	1.31 in
Dimension - Width fraction	1-7/8 in
Dimension - Width mm	48 mm

Dimension - Height fraction	2-1/2 in
Dimension - L Length Overall mm	33 mm
Dimension - Outside Diameter inch	0.54 in
Dimension - Width inch	1.88 in

Certifications and Compliance

Certification - CSA Approved	No
Certification - UL Listed Direct Burial	Yes
Certification - cULus	No
Standards - Industry Standards Met	UL467
UL Listed	Yes

Certification - ETL	No
Certification - UL Recognized	No
Industry Standard(s)	UL467
Standards - RoHS Compliance Status	EX

Conductor Related

Conductor - Copper Solid Size	8 AWG
Conductor - Copper Str Size	4 AWG
Conductor - Copper Tube Std Size	1/4 IPS IPS
Conductor - Pipe or Round Tube Size Range	1/4 in
Conductor - Rod Size Range	1/2 in

Conductor - Copper Solid Size Range	8 AWG-3 AWG
Conductor - Copper Str Size Range	9 AWG-4 AWG
Conductor - Copper Tube Std Size Range	1/4 IPS IPS
Conductor - Rod Size	.5 in

General

Application	For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Direct Burial Cable, Fence Post
Installation Torque Recommended in-lb	240 LBS/in
Material - Hardware	DURIUM™ Silicon Bronze
Plating Type	Bright Dipped
Type	GAR
UPC	781810231005
