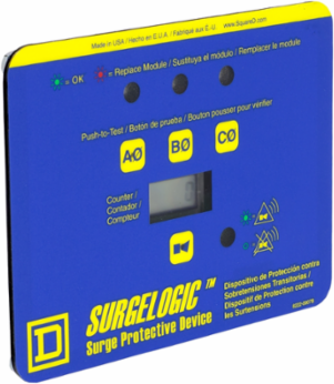

Square D TVS3DSPHIC Surge Suppressor Display Kit, 3 Phase, 120/240V AC, 120kA
- MPN: TVS3DSPHIC
- UPC: 785901540922
- PPN: SCH-TVS3DSPHIC
CAD
$2288.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Transient voltage surge suppressor (TVSS) units protect sensitive electronic equipment from transients. TVSS is a modular parallel device designed for service entrance, distribution or branch panel applications. This kit is a digital display unit and counter. It is for three phase I-Line Plug-on SPDs. The unit has a horizontal orientation with the RJ45 patch cable connection at the bottom of the unit. This display unit is a replacement for TVSS Surgelogic.
